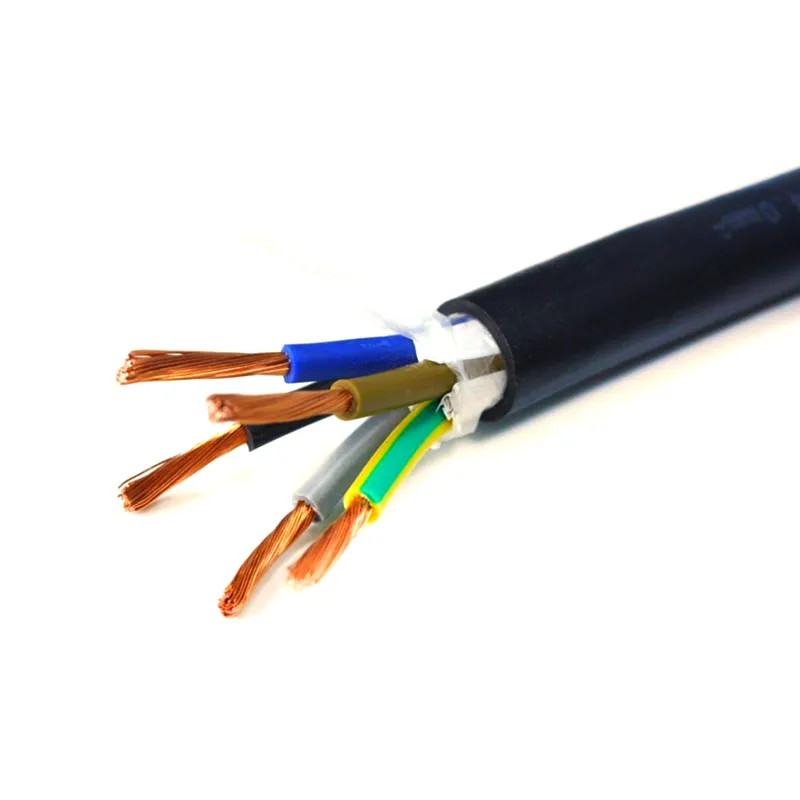

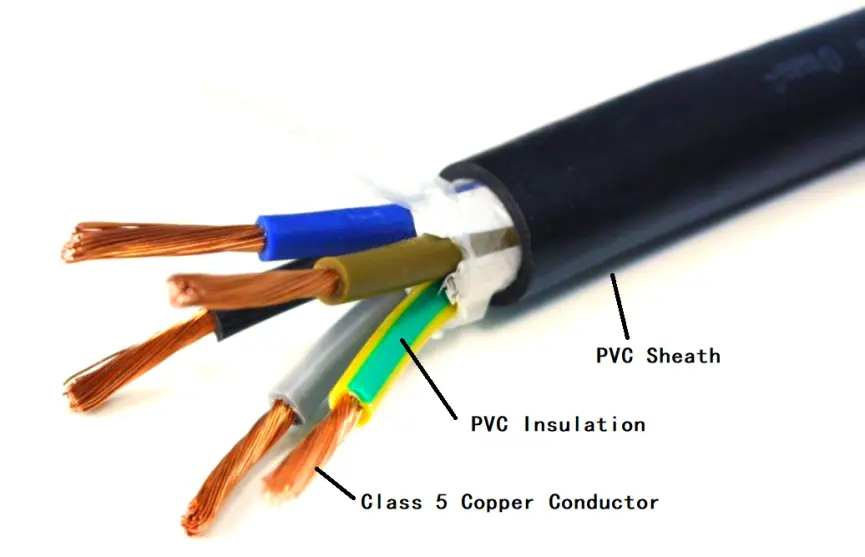

IEC 60227 RVV PVC Insulated Multi-Core Cable is one of Beida's products, we are a professional manufacturer in CHina. With excellent electrical performance, it has become the preferred multi-industry. Its conductor DC resistance is low, effectively reducing energy loss, greatly improving power transmission efficiency. This cable is suitable for extreme temperatures, operating temperature range-5 C to +70 C, and can withstand high temperature of 160ºC in case of short circuit, ensuring safety in all environments. At the same time, it can protect the stable operation of electrical system through 2kV test voltage detection, which is an ideal choice for pursuing high reliability and durability power system.
This cable is flexible and widely used in building wiring, industrial equipment, electrical control cabinets, temporary electrical installations and other scenarios. Its bending radius is small, only five times the outer diameter, easy to install, and can easily cope with small and complex spaces. In addition, color coding or Arabic numeral mark insulation design helps users quickly identify circuits and improve work efficiency. IEC 60227 RVV cable, stable structure, durability, reduce frequent replacement trouble, is your trusted electrical partner!
1. Small bending radius (5 times outer diameter), easy to install.

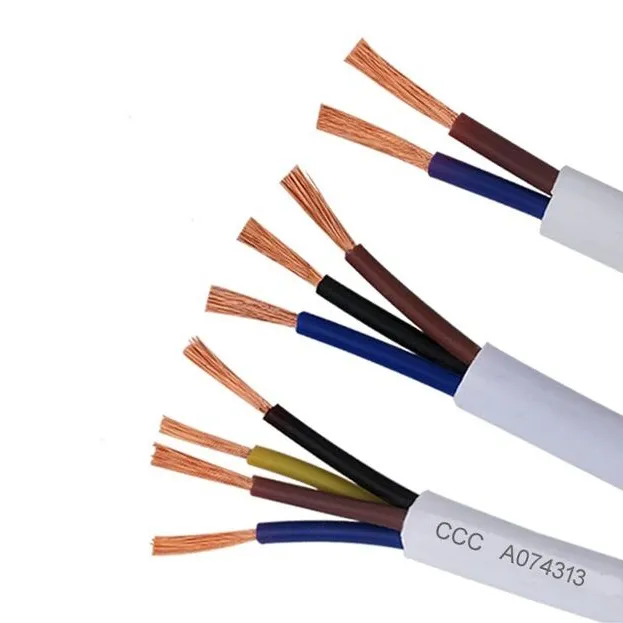

1. Provide color-coded insulation or Arabic numerals marking insulation for easy circuit identification
2. operating temperature range: -5º℃ to +70º℃
3. short-circuit temperature ：+160 ºC
4. Rated voltage: 300/500 volts: 60227 IEC 53、60227 IEC 53（RVV）、 RVV
6. Test voltage: 2 kV for 5 minutes without breakdown
7. 20ºC conductor DC resistance (GB/T 3956-2008 standard)
8. Single vertical flame retardant test according to GB/T 19666-2019 standard
9. Flame retardancy (A, B, C, D) test according to GB/T 19666 - 2019 standard (optional) Fire resistance test according to GB/T 19666 - 2019 standard (optional)
Product design: dimension and Insulation Resistance
|
Type |
Conductor |
Dimension of Insulation and Sheath |
Max Insulation Resistance at 70 ℃ |
||||
|
Nominal Area |
Structure of Conductor |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|||
|
(mm) |
|||||||
|
mm |
No./mm |
mm |
mm |
Min |
Max |
MΩ·km |
|
|
60227 IEC 52 300/300V; 60227 IEC 52(RVV) 300/300V |
2×0.5 |
16/0.20 |
0.5 |
0.6 |
4.6 or |
5.9 or |
0.012 |
|
3.0×4.9 |
3.7×5.9 |
||||||
|
2×0.75 |
24/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.010 |
|
|
3.2×5.2 |
3.8×6.3 |
||||||
|
3×0.5 |
16/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.012 |
|
|
3×0.75 |
24/0.20 |
0.5 |
0.6 |
5.2 |
6.7 |
0.010 |
|
|
60227 IEC 53 300/500V; 60227 IEC 53(RVV) 300/500V |
2×0.75 |
24/0.20 |
0.6 |
0.8 |
5.7 or |
7.2 or |
0.011 |
|
3.7×6.0 |
4.5×7.2 |
||||||
|
2×1 |
32/0.20 |
0.6 |
0.8 |
5.9 |
7.5 |
0.010 |
|
|
3.9×6.2 |
4.7×7.5 |
||||||
|
2×1.5 |
30/0.25 |
0.7 |
0.8 |
6.8 |
8.6 |
0.010 |
|
|
2×2.5 |
50/0.25 |
0.8 |
1.0 |
8.4 |
10.6 |
0.009 |
|
|
3×0.75 |
24/0.20 |
0.6 |
0.8 |
6.0 |
7.6 |
0.011 |
|
|
3×1 |
32/0.20 |
0.6 |
0.8 |
6.3 |
8.0 |
0.010 |
|
|
3×1.5 |
30/0.25 |
0.7 |
0.9 |
7.4 |
9.4 |
0.010 |
|
|
3×2.5 |
50/0.25 |
0.8 |
1.1 |
9.2 |
11.4 |
0.009 |
|
|
4×0.75 |
24/0.20 |
0.6 |
0.8 |
6.6 |
8.3 |
0.011 |
|
|
4×1 |
32/0.20 |
0.6 |
0.9 |
7.7 |
9.0 |
0.010 |
|
|
4×1.5 |
30/0.25 |
0.7 |
1.0 |
8.4 |
10.5 |
0.010 |
|
|
4×2.5 |
50/0.25 |
0.8 |
1.1 |
10.1 |
12.5 |
0.009 |
|
|
5×0.75 |
24/0.20 |
0.6 |
0.9 |
7.4 |
9.3 |
0.011 |
|
|
5×1 |
32/0.20 |
0.6 |
0.9 |
7.8 |
9.8 |
0.010 |
|
|
5×1.5 |
30/0.25 |
0.7 |
1.1 |
9.3 |
11.6 |
0.010 |
|
|
5×2.5 |
50/0.25 |
0.8 |
1.2 |
11.2 |
13.9 |
0.009 |
|
|
RVV 300/500V |
2×1.5 |
30/0.25 |
0.7 |
0.8 |
4.3×6.0 |
5.8×8.6 |
0.011 |
|
2×2.5 |
50/0.25 |
0.8 |
1.0 |
5.3×7.6 |
7.1×10.6 |
0.0095 |
|
|
2×4 |
56/0.30 |
0.8 |
1.1 |
10.0 or |
12.4 or |
0.0079 |
|
|
5.9×8.6 |
7.9×11.8 |
||||||
|
3×4 |
56/0.30 |
0.8 |
1.2 |
10.8 |
13.5 |
0.0079 |
|
|
4×4 |
56/0.30 |
0.8 |
1.2 |
11.8 |
14.6 |
0.0079 |
|
|
5×4 |
56/0.30 |
0.8 |
1.4 |
13.3 |
16.5 |
0.0079 |
|
|
2×6 |
84/0.30 |
0.8 |
1.1 |
10.6 or |
13.9 or |
0.0069 |
|
|
6.5×10.0 |
8.8×13.4 |
||||||
|
3×6 |
84/0.30 |
0.8 |
1.2 |
11.5 |
15.0 |
0.0069 |
|
|
4×6 |
84/0.30 |
0.8 |
1.2 |
12.7 |
16.4 |
0.0069 |
|
|
5×6 |
84/0.30 |
0.8 |
1.4 |
14.3 |
18.4 |
0.0069 |
|
GB/T 5023.5-2008
GB/T 19666-2019
Internal wiring of control cabinets, electrical equipment and instruments.
Power cords for machinery, tools and equipment.
Building wiring is used for lighting, sockets and secondary circuits (subject to local codes).
Temporary electrical installations and extensions.
