Choose Beida as your H05VV-F H03VV-F PVC Flexible Multi Core Cable manufacturer and supplier, we can offer high quality product with customized options.

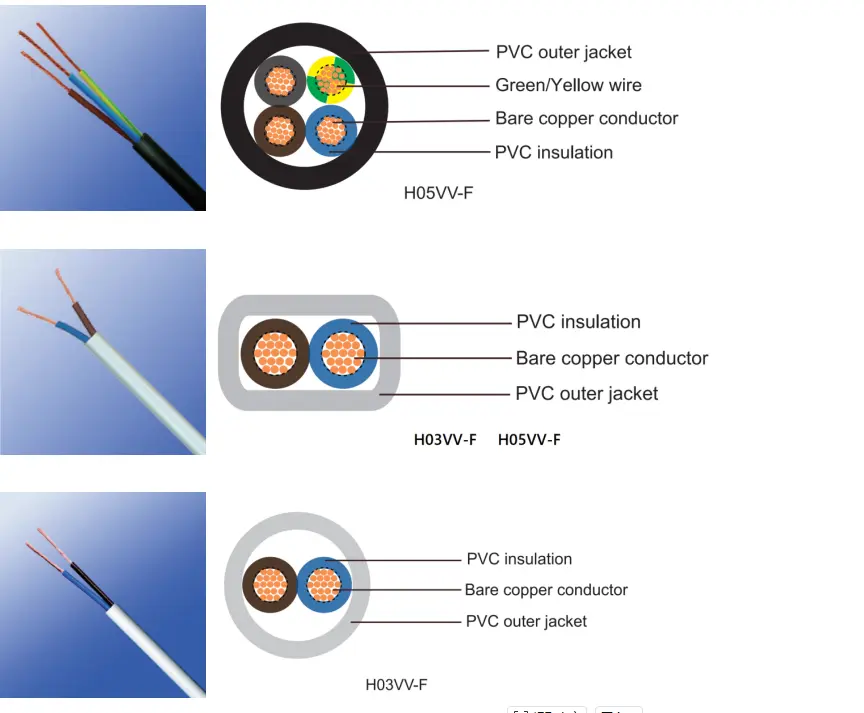

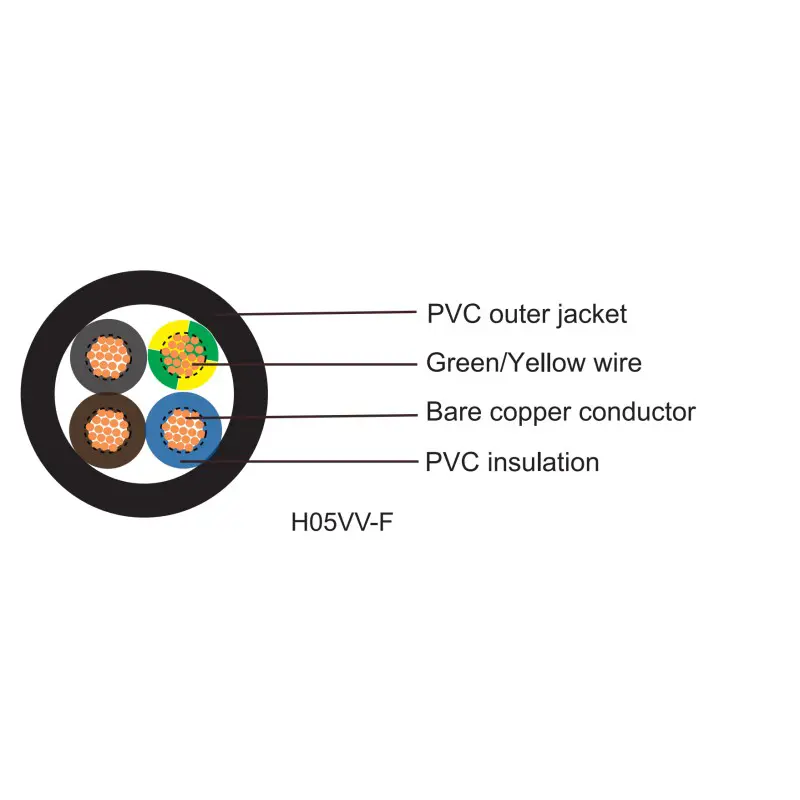

H05VV-F, H05VVH2-F, H03VV-F, H03VVH2-F is composed of Class 5 fine copper conductors, lead-free PVC insulation and sheath.
Conductor: :Fine copper conductor complying with EN 60228 cl-5
Insulation: Polyvinylchloride compound of TI 2 according to EN 50363-3
Sheath: Polyvinylchloride compound of TM 2 according to EN 50363-4-1
The power cord of household appliances and tools
The power cords or control cables for industrial instruments and meters
Internal wiring of control cabinets
The connecting wires for temporary electrical installations and extensions.
These H05VV-F H03VV-F PVC Flexible Multi Core Cables for white colour sheath are not suitable for outdoor use.
The cables do not come into direct contact with any other heat source.
H03VV-F H03VVH2-F rated voltage: 300/300V
Sizes of cable: circulr cables 0.5mm2 and 0.75mm2 2,3 and 4 cores;

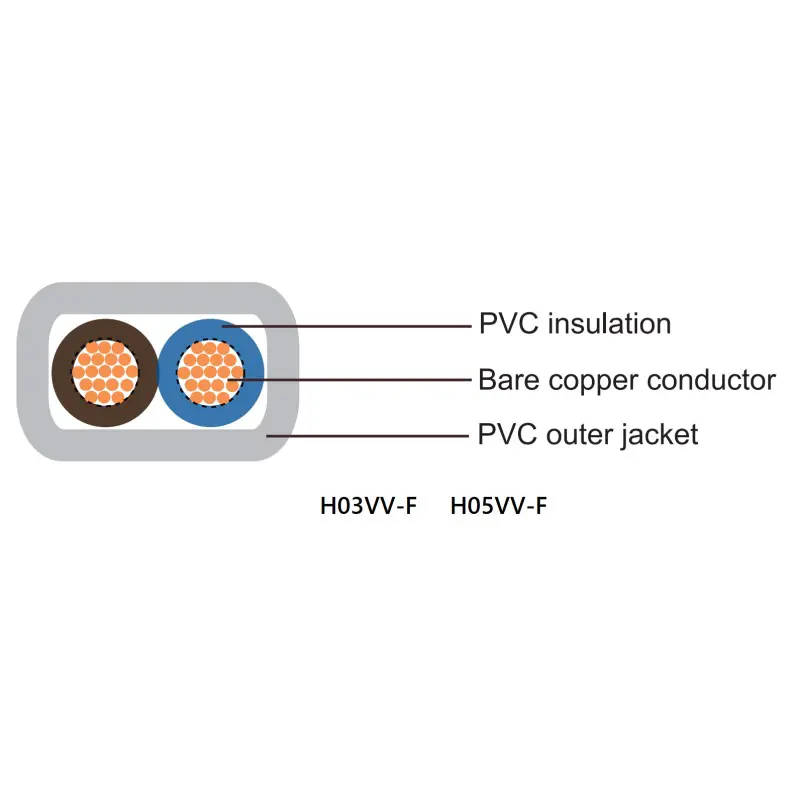

flat cables 0.5mm2 and 0.75mm2 2 cores only;
H05VV-F H05VVH2-F rated voltage: 300/500V
Sizes of cable: circulr cables 0.75mm2 and 4mm2 2,3,4 and 5 cores;
flat cables 0.75mm2 and 1.5mm2 2 cores only;
Conductor DC resistance at 20ºC：according to EN 60228
Rated Temperature: ＋70℃
Test voltage: 2000 volts for 5min, no brokendown occured
Working temperature: -5º C to +70ºC
Bending radius: 7.5 × Ø
Short circuit temperature: +160 ºC
Flame retardant: according to IEC 60332-1-2
Dimensional tests and insulation resistance at 70ºC see below sheet
|
Type |
Conductor |
Dimension of Insulation and Sheath |
Max Insulation Resistance at 70 ℃ |
||||
|
Nominal Area |
Structure of Conductor |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|||
|
(mm) |
|||||||
|
mm |
No./mm |
mm |
mm |
Min |
Max |
MΩ·km |
|
|
H05VV-F 300/500V |
2×0.75 |
24/0.20 |
0.6 |
0.8 |
5.7 |
7.2 |
0.011 |
|
2×1 |
32/0.20 |
0.6 |
0.8 |
5.9 |
7.5 |
0.010 |
|
|
2×1.5 |
30/0.25 |
0.7 |
0.8 |
6.8 |
8.6 |
0.010 |
|
|
2×2.5 |
50/0.25 |
0.8 |
1.0 |
8.4 |
10.6 |
0.009 |
|
|
3×0.75 |
24/0.20 |
0.6 |
0.8 |
6.0 |
7.6 |
0.011 |
|
|
3×1 |
32/0.20 |
0.6 |
0.8 |
6.3 |
8.0 |
0.010 |
|
|
3×1.5 |
30/0.25 |
0.7 |
0.9 |
7.4 |
9.4 |
0.010 |
|
|
3×2.5 |
50/0.25 |
0.8 |
1.1 |
9.2 |
11.4 |
0.009 |
|
|
4×0.75 |
24/0.20 |
0.6 |
0.8 |
6.6 |
8.3 |
0.011 |
|
|
4×1 |
32/0.20 |
0.6 |
0.9 |
7.7 |
9.0 |
0.010 |
|
|
4×1.5 |
30/0.25 |
0.7 |
1.0 |
8.4 |
10.5 |
0.010 |
|
|
4×2.5 |
50/0.25 |
0.8 |
1.1 |
10.1 |
12.5 |
0.009 |
|
|
5×0.75 |
24/0.20 |
0.6 |
0.9 |
7.4 |
9.3 |
0.011 |
|
|
5×1 |
32/0.20 |
0.6 |
0.9 |
7.8 |
9.8 |
0.010 |
|
|
5×1.5 |
30/0.25 |
0.7 |
1.1 |
9.3 |
11.6 |
0.010 |
|
|
5×2.5 |
50/0.25 |
0.8 |
1.2 |
11.2 |
13.9 |
0.009 |
|
|
2×4 |
56/0.30 |
0.8 |
1.1 |
9.7 |
12.1 |
0.007 |
|
|
3×4 |
56/0.30 |
0.8 |
1.2 |
10.5 |
13.1 |
0.007 |
|
|
4×4 |
56/0.30 |
0.8 |
1.2 |
11.5 |
14.3 |
0.007 |
|
|
5×4 |
56/0.30 |
0.8 |
1.4 |
13.0 |
16.1 |
0.007 |
|
|
H05VVH2-F 300/500V |
2×0.75 |
24/0.20 |
0.6 |
0.8 |
3.7×6.0 |
4.5×7.2 |
0.011 |
|
2×1 |
32/0.20 |
0.6 |
0.8 |
3.9×6.2 |
4.7×7.5 |
0.010 |
|
|
H03VV-F 300/300V |
2×0.5 |
16/0.20 |
0.5 |
0.6 |
4.6 |
5.9 |
0.011 |
|
2×0.75 |
24/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.010 |
|
|
3×0.5 |
16/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.011 |
|
|
3×0.75 |
24/0.20 |
0.5 |
0.6 |
5.2 |
6.7 |
0.010 |
|
|
4×0.5 |
16/0.20 |
0.5 |
0.6 |
5.4 |
6.9 |
0.011 |
|
|
4×0.75 |
24/0.20 |
0.5 |
0.6 |
5.7 |
7.3 |
0.010 |
|
|
H03VVH2-F 300/300V |
2×0.75 |
24/0.20 |
0.5 |
0.6 |
3.0×4.9 |
3.7×5.9 |
0.011 |
|
2×1 |
32/0.20 |
0.5 |
0.6 |
3.2×5.2 |
3.8×6.3 |
0.010 |
|
Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
Port: Tianjin Port
Delivery: By Sea, By Air, By express.
1) Are you a manufacturer or trading company?
Tianjin Beida Group was founded in 1989 with a registered capital of 255.78 million yuan. It is a local brand in Tianjin, and has 34 years of cable professional manufacturing history.
2) Can I order the cable/wire which is lower than your minimum order quantity?
It is necessary to check whether there is any inventory in the warehouse. If there is, an order can be placed; if not, you needs to wait for a period of time for our factory to prepare new products.
3) Are samples free shipping?
Sorry, it should be on customer side.
4) How are flame-retardant cables classified?
Flame-retardant electrical wires and cables are generally divided into two major categories. One category is in accordance with the vertical flame propagation test for single wires and cables, and the other is in accordance with test for vertical flame spread of vertically-mounted bunched wires or cable (abbreviated as the bundle flame test.). The bundle flame test is further divided into four subcategories: Category A, Category B, Category C, and Category D.
