450/750V Armored Control Cable adopts high purity oxygen-free copper conductor to ensure excellent conductivity and stable current transmission. Rated at 450/750V, it provides strong electrical insulation to prevent signal leakage and short circuit. Suitable for all kinds of equipment that transmit control signals, such as PLC, sensors, actuators, etc., to ensure that your equipment can still work reliably in harsh environments. Whether in high-voltage, long-running equipment or in complex environments where multiple cables are installed in parallel, KVV cables provide long-lasting power support, improving overall equipment reliability and efficiency.

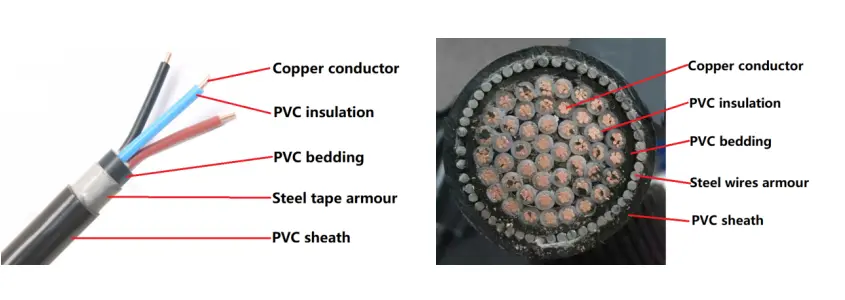

450/750V Armored Control Cable is mainly composed of a T1R copper conductor , PVC insulation，PVC bedding, Steel tape or Steel wires armour and PVC sheath.
|
450/750V Armored Control Cable |
|
|
Model |
Names |
|
KVV22 |
PVC insulated PVC sheathed steel tape armored control cable |
|
KVVP2-22 |
PVC insulated PVC sheathed copper tape shielded steel tape armored control cable |
|
KVV32 |
PVC insulated PVC sheathed steel wire armored control cable |

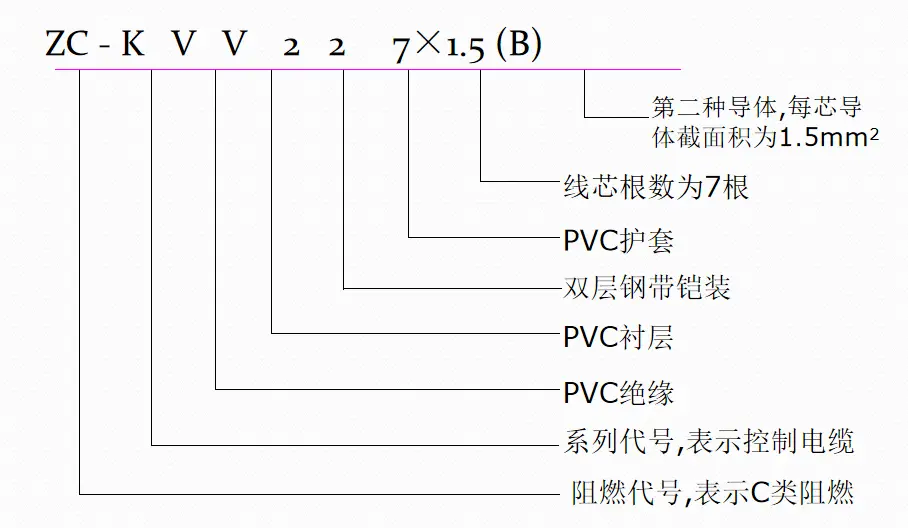

Product Code: Series Code--K
Material characteristic codes: copper conductor-omitted; PVC insulation- V; XLPE or XLPO insulation- YJ; PVC sheath- V; PE or PO sheath- Y
Structural feature code: braided shield-P; copper tape shield-P2; aluminum/plastic composite film shield-P3; Soft construction (mobile laying)- R; double steel tape armor-2; steel wire armor-3; PVC outer sheath- 2; polyethylene or polyolefin outer sheath- 3
With the increasing importance of environmental protection and energy conservation and emission reduction, Beida Group is committed to the R & D and production of green products. Our PVC insulated PVC sheathed control cables are made of wear-resistant, oil-resistant and ageing-resistant PVC sheath materials, which not only improve the service life of the cable, but also effectively reduce the impact of the environment on the cable. Products meet flame retardant standards and effectively delay the spread of fire, providing additional safety for your project. Choose Beida, you not only get high-performance cables, but also help the green development and sustainable operation of the enterprise.
|
character |
KVV22（ steel tape armoring ） |
KVV32（fine steel wire armored ） |
|
mechanical protective |
Anti-lateral pressure, anti-extrusion ability, anti-rat bite, anti-mechanical scratch effect is good |
High tensile strength, able to withstand large tensile force, outstanding impact resistance and torsion resistance |
|
lay |
Suitable for direct burial, pipeline, cable trench and other fixed laying, bending radius is relatively large |
Suitable for vertical shaft, high drop, large span laying, and traction occasions, bending radius is smaller |
|
behaviour of electricity |
Rated voltage 450/750V, stable insulation, reliable signal transmission |
Rated voltage 450/750V, insulation and sheath chemical corrosion resistance, adapt to humidity, acid and alkali environment |
|
weight and cost |
Moderate weight, relatively low cost |
Weight is higher, cost is higher than KVV22 |
|
force joints |
Withstand lateral pressure/compression (soil, stones, equipment) |
Withstand lateral pressure/compression (soil, stones, equipment) Withstand tension/traction (own weight, laying traction, high drop) Withstand impact/torsion (equipment collision, line drag)$> |
|
system of laying |
1. Direct Buried Laying (Direct Buried Underground) 2. Cable trench/tunnel/pipe laying |
1. Directly buried laying (directly buried underground) 2. Cable trench/tunnel/pipe laying 3. Shaft/elevator shaft/vertical wiring (high drop, vertical suspension) 4. Long-span bridge (bridge, long-distance overhead bridge) |
Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
Port: Tianjin Port
Delivery: By Sea, By Air, By express.
