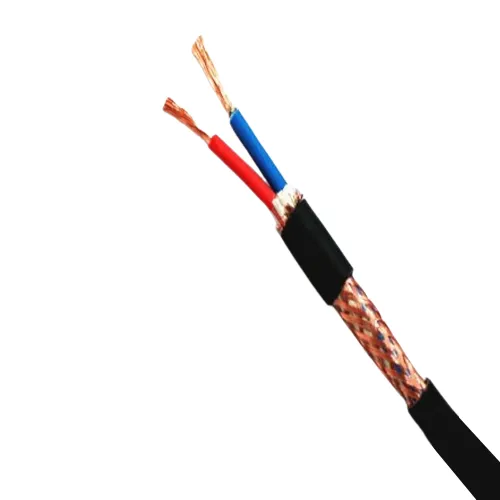

Beida is a professional wire and cable supplier in China, among our products, RVVP PVC Insulated Screened Wires, with its unique copper braid shielding layer, has become the leader in anti-electromagnetic interference (EMI). This design effectively isolates external interference and ensures stable and clear signal transmission. Compared with traditional RVV cables, RVVP is superior in anti-interference ability, especially suitable for equipment and systems with extremely high requirements for signal integrity. Whether it is precision control in the field of industrial automation or high-precision requirements for data communication and audio and video transmission, RVVP cables are ideal. It can maintain the purity and reliability of the signal in long-distance transmission or strong interference environment, showing excellent electrical performance.
|
300/300 volts: RVVP |
|||||||||
|
Rated Temperature: ＋70℃ |
|||||||||
|
Standard: JB/T 8734.3 : RVV |
|||||||||
|
Type |
Conductor |
Dimension of Insulation and Sheath |
Electrical Characteristic |
||||||
|
Nominal Area |
Structure of Conductor |
Insulation Thickness |
Braiding coverage density |
Sheath Thickness |
Overall Diameter (mm) |
Conductor Resistance at 20 ℃ Max |
Max Insulation Resistance at 70 ℃ |
||
|
mm |
No./mm |
mm |
% |
mm |
Min |
Max |
Ω／km |
MΩ·km |
|
|
RVVP 300/300V |
2×0.5 |
16/0.20 |
0.5 |
80 |
0.6 |
5.3 or |
6.8 or |
39.0 |
0.012 |
|
3.7×5.6 |
4.5×6.8 |
||||||||
|
2×0.75 |
24/0.20 |
0.5 |
80 |
0.6 |
5.8 or |
7.4 or |
26.0 |
0.010 |
|
|
4.0×6.1 |
4.8×7.4 |
||||||||
|
2×1 |
32/0.20 |
0.6 |
80 |
0.6 |
6.4 or |
8.2 or |
19.5 |
0.011 |
|
|
4.3×6.7 |
5.2×8.3 |
||||||||
|
2×1.5 |
30/0.25 |
0.6 |
80 |
0.8 |
7.3 or |
9.2 or |
13.3 |
0.0094 |
|
|
4.9×7.6 |
6.0×9.3 |
||||||||
|
2×2.5 |
50/0.25 |
0.7 |
80.0 |
1.0 |
8.8 |
11.7 |
7.98 |
0.0086 |
|
|
2×4 |
56/0.30 |
0.8 |
80.0 |
1.2 |
10.6 |
13.9 |
4.95 |
0.0079 |
|
|
3×0.5 |
16/0.20 |
0.5 |
80.0 |
0.6 |
5.6 |
7.1 |
39.0 |
0.012 |
|
|
3×0.75 |
24/0.20 |
0.5 |
80.0 |
0.6 |
6.1 |
7.8 |
26.0 |
0.010 |
|
|
3×1 |
32/0.20 |
0.6 |
80.0 |
0.8 |
7.2 |
9.1 |
19.5 |
0.011 |
|
|
3×1.5 |
30/0.25 |
0.6 |
80.0 |
0.8 |
8.0 |
10.0 |
13.3 |
0.0094 |
|
|
3×2.5 |
50/0.25 |
0.7 |
80.0 |
1.0 |
9.5 |
12.6 |
7.98 |
0.0086 |
|
|
3×4 |
56/0.30 |
0.8 |
80.0 |
1.2 |
11.5 |
14.9 |
4.95 |
0.0079 |
|
|
4×0.5 |
16/0.20 |
0.5 |
80.0 |
0.8 |
6.5 |
8.9 |
39.0 |
0.012 |
|
|
4×0.75 |
24/0.20 |
0.6 |
80.0 |
0.8 |
6.8 |
9.3 |
26.0 |
0.010 |
|
|
4×1 |
32/0.20 |
0.6 |
80.0 |
0.9 |
7.8 |
10.5 |
19.5 |
0.011 |
|
|
4×1.5 |
30/0.25 |
0.7 |
80.0 |
0.9 |
8.4 |
11.5 |
13.3 |
0.0094 |
|
|
4×2.5 |
50/0.25 |
0.8 |
80.0 |
1.0 |
10.1 |
13.6 |
7.98 |
0.0086 |
|
|
5×0.5 |
16/0.20 |
0.5 |
80.0 |
0.8 |
7.0 |
9.5 |
39.0 |
0.012 |
|
|
5×0.75 |
24/0.20 |
0.6 |
80.0 |
0.8 |
7.4 |
10.0 |
26.0 |
0.010 |
|
|
5×1 |
32/0.20 |
0.6 |
80.0 |
0.9 |
8.5 |
11.3 |
19.5 |
0.011 |
|
|
5×1.5 |
30/0.25 |
0.7 |
80.0 |
1.0 |
9.6 |
12.6 |
13.3 |
0.0094 |
|
|
5×2.5 |
50/0.25 |
0.8 |
80.0 |
1.1 |
11.5 |
14.9 |
7.98 |
0.0086 |
|
For fire-resistant cables, two layers of mica tape are wound around the conductor, resulting in an increase of 2-3mm in the outer diameter.
RVVP PVC Insulated Screened Wires not only have excellent performance, but also meet many international standards and certifications, such as CCC certification and GB/T 19666-2019 standard, demonstrating their excellent quality in terms of electrical safety, anti-interference and durability. Beida Group strictly follows IEC 60228, IEC 60332 and other international quality standards, and each cable is strictly tested to ensure high quality. Whether it is temperature changes, bend testing or fire resistance, RVVP cables meet stringent requirements, allowing customers to use them safely in any environment and enjoy long-term stable performance.
CCC certificated
GB/T 5023.5-2008
GB/T 19666-2019
1. Working voltage: 300/300 volts: RVVP
2. Test voltage: 1500 volts for 5min
3. Working temperature: -5º C to +70º C
4. Bending radius: 7.5 × Ø
5. Short circuit temperature: +160 ºC
6. Flame retardant: Test for vertical flame propagation for a single wires, test for vertical flame spread of vertically-mounted bunched wires or cables- Category A,B,C,D, conforms to the standard IEC 60332, GB/T 19666, GB/T 18380, according to customer's requirement
7. Fire resistance: 750°C 90 min, conforms to the standard IEC 60331, GB/T 19666, GB/T 19216
Choose Tianjin Beida, choose safer and more efficient cable solutions!
Whether you need to solve electromagnetic interference problems or need to ensure the stability of data transmission, Tianjin Beida Cable Group can provide you with the most professional and reliable products and services. Choosing us means choosing industry-leading quality and technical support to make your equipment and systems more stable and safe. Contact us today to choose the cable that works best for you and start enjoying more efficient and safe electrical system solutions!
