H05V-K H05V-U H05V-R Approved Hook-up PVC Single Core Cable

As an industry leader with more than 30 years of history, Tianjin Beida Cable Group Co., Ltd. has always been committed to providing customers with safe, durable and efficient wire and cable solutions with technological innovation and quality management as its core. We can offer high quality H05V-K H05V-U H05V-R Approved Hook-up PVC Single Core Cable worldwide.

Send Inquiry

Product Description

Tianjin Beida Cable Group, more than 30 years of industry deep cultivation, is a professional manufacturer of high quality H05V-K H05V-U H05V-R Approved Hook-up PVC Single Core Cable! H05V-U, H05V-R, H05V-K PVC cable, excellent performance, wide application, safe and reliable. It rated voltage 300/500V, designed for a variety of electrical connections, indoor electrical installation, corrosion resistance, wear resistance and stability, household, industrial, precision instrument connections are stable, is the ideal choice for high safety, high reliability power connections.

The cable is durable, energy-saving and environment-friendly, has strong anti-aging ability, can be used for a long time in high temperature, low temperature and humid environment, reduces maintenance and replacement cost, and meets environmental protection standards with low emission. And various specifications, H05V-U suitable for fixed wiring, H05V-R bending resistance, H05V-K flexible to adapt to mobile and complex environments.

Product Drawing Structure

H05v K H05v U H05v R Approved Hook Up Pvc Single Core Cable

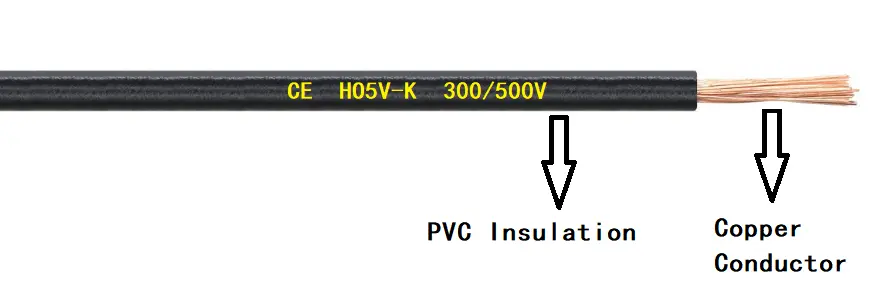

H05V single-core cable is composed of copper conductors and lead-free PVC insulation.

Conductor constructure : H05V-U: comply with EN 60228 cl-1, H05V-R: comply with EN 60228 cl-2, H05V-K: comply with EN 60228 cl-5

Insulation material: Polyvinylchloride compound of TI 2 according to EN 50363-3

Performance description

Rated voltage: 300/500V

Test voltage: 2000 V

Conductor Resistance: See below sheet

Core colour: blue, Brown, black, grey, red, Yellow/green, or according to customer requirement

Working temperature: -5º C to +70º C

Short circuit temperature: +160 ºC

Flame retardant: according to IEC 60332-1-2

Minimum Bending radius, stationary: 4* OD

Minimum Bending radius with careful bending: 2* OD

Dimension size: See below sheet

UV-resistance: No

Weather-resistance: No

CE marking: Yes

Type	Conductor		Insulation			Electrical Characteristic
	Nominal Area	Structure of Conductor	Insulation Thickness	Overall Diameter		Conductor Resistance at 20 ℃ Max
	Nominal Area	Structure of Conductor	Insulation Thickness	(mm)		Conductor Resistance at 20 ℃ Max
	mm	No./mm	mm	Min	Max	Ω／km
H05V-U	0.5	1/0.80	0.6	1.9	2.3	39.0
	0.75	1/0.97	0.6	2.1	2.5	26.0
	1	1/1.13	0.6	2.2	2.7	19.5
H05V-R	0.5	7/0.30	0.6	2.0	2.4	39.0
	0.75	7/0.37	0.6	2.2	2.6	26.0
	1	7/0.43	0.6	2.3	2.8	19.5
H05V-K	0.5	16/0.20	0.6	2.1	2.5	39.0
	0.75	24/0.20	0.6	2.2	2.7	26.0
	1	32/0.20	0.6	2.4	2.8	19.5

Certifications and Standard

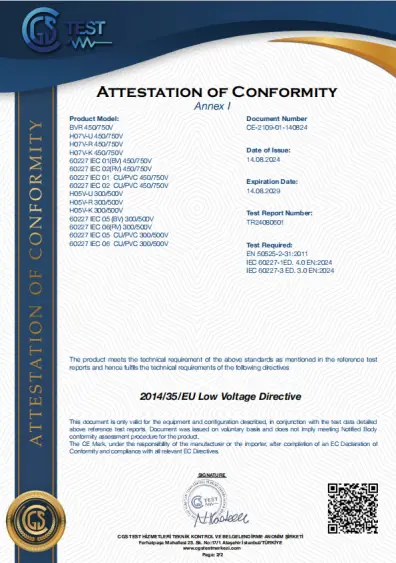

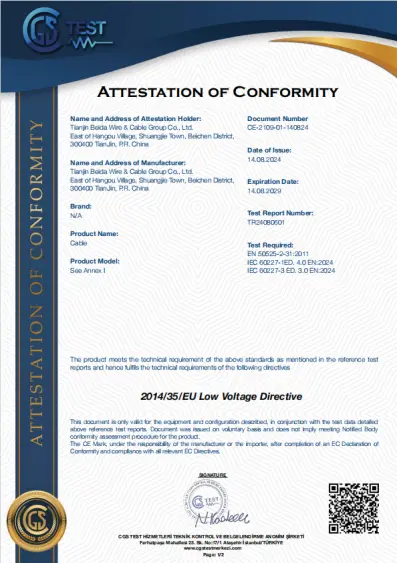

CE certificated

H05v K H05v U H05v R Approved Hook Up Pvc Single Core Cable

Standard: EN 50525-3-21, IEC 60227-1, IEC 60227-3

Successive Cases

H05v K H05v U H05v R Approved Hook Up Pvc Single Core Cable

Tianjin National Exhibition Center Tianjin Jinwan Square Tianjin the Five Great Avenues

Tianjin Beida is a China H05V-K H05V-U H05V-R Approved Hook-up PVC Single Core Cable manufacturer and supplier. H05V is a single-core PVC insulated cable with rated voltage 300/500V. Depending on the structure of the conductor, it can be classified into three types H05V-U, H05V-R and H05V-K. It is mainly used for connecting the internal wires of electrical control cabinets, household electrical boxes, instrument and equipment etc.

Beida Group is a high-tech enterprise, products in strict accordance with ISO9001, ISO14001 system production, long-term cooperation with many well-known enterprises. Choose Beida cable, is to choose reliable partners, to ensure the stable operation of power equipment, enjoy efficient and safe electrical connection, hurry up!
