KVV Control Cable 450/750V

KVV Control Cable 450/750V, is the most basic model of control cable, the highest cost performance.  This type of control cable has a maximum service temperature of 70 ° C. It can be used in indoor dry environment, for fixed laying, for electrical instruments with AC rated voltage of 450/750V and below, and for control and measurement systems of power distribution devices.  PVC sheath has good flame retardant, moisture-proof and wear resistance, plays a good role in protecting the internal insulation layer and conductor, and meets the protection requirements of control cables during laying (such as pipe penetration and bridge laying).

Product Structure

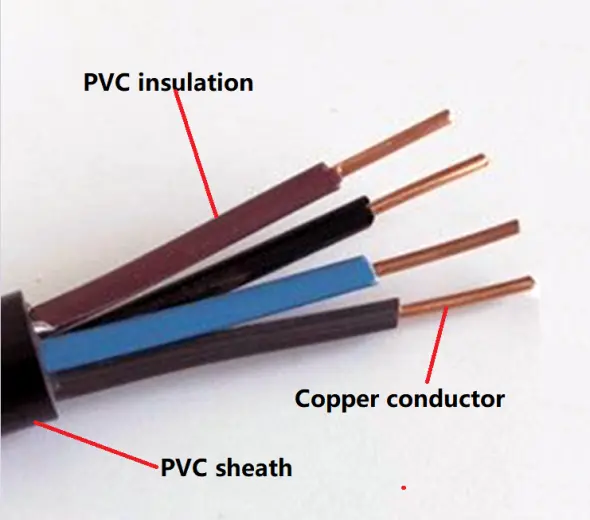

KVV Control Cable 450/750V is mainly composed of a T1R copper conductor , PVC insulation and PVC sheath.

Conductor:   Copper conductor , round standed or Shaped, Class 1,Class 2 to GB/T 3956, IEC 60228

For cross-section area is not more than 6mm2, a solid round conductor may be used.

Insulation: Insulation thickness, material property shall be as per GB/T 9330.

Core Colour:

2 cores: blue, brown or black

3 cores: green/yellow, blue, brown or blue, black, brown

4 cores: green/yellow, blue, black, brown or blue, black, brown, grey

5 cores: green/yellow, blue, black, brown, grey or blue, black, brown, grey, black

Above 5 coes: black cores with white number

Outer sheath: Sheath thickness, material property shall be as per GB/T 9330.

Flame-retradant cable: Flame-retardant PVC outer sheath material shall be used. The flame retardant grades can be classified into three categories: Bunch A, B, and C.

Fire-resistance cable: Two layer of Mica tape shall be wound around the conductor.

Why choose Beida Group PVC Insulated and Sheathed control Cable

Select Beida cable PVC insulated sheath control cable, that is, select reliable leading brand.  Beida Cable was established in 1989, has 30 years of industry experience, won a number of honors, product stability, durability and safety; using high-quality PVC materials, fire resistance, wear resistance, moisture resistance, good flame retardance, to ensure safety; cost-effective, suitable for rated voltage 450/750V below a variety of scenarios, to meet cost control and functional requirements; easy installation, wear and waterproof, reduce downtime and maintenance costs; in line with international environmental standards, environmental protection materials non-toxic; There is also a professional after-sales team to provide technical support at any time to ensure long-term stable operation of products.

Packaging & Delivery

Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.

Port: Tianjin Port

Delivery: By Sea, By Air, By express.
