If you want to get factory direct prices of KVVR Control Soft Cable 450/750V, you can contact Tianjin Beida. We are a professional manufacturer with 30+ years of experience.
Industrial Automation: Used in equipment requiring frequent bending and twisting, such as robotic arms, CNC machine tools, and automated production lines, for transmitting control signals and auxiliary power.
Smart Buildings: Building automation (BA) systems, connecting sensors, actuators, and control cabinets, used for signal transmission in air conditioning, lighting, and security systems.
Instrumentation: Precision signal transmission in laboratories and testing equipment, offering low attenuation and anti-interference capabilities, with flexible wiring.
Mobile Equipment: Control circuits for equipment that moves with the device, such as stage lighting and sound systems, and medical equipment (e.g., CT scanners, operating tables).
Others: Control and signal circuits in mining, rail transit, and marine applications (ZC-KVVR is available for flame-retardant applications).

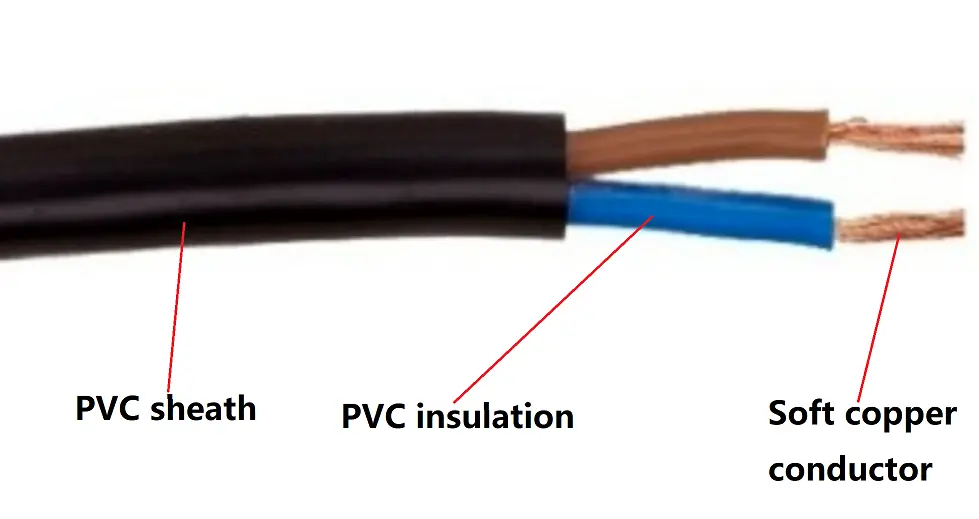

Conductor: Copper conductor, round standed or Shaped, Class 5 to GB/T 3956, IEC 60228
Insulation: Insulation thickness, material property shall be as per GB/T 9330.
Core Colour: 2 cores: blue, brown or black
3 cores: green/yellow, blue, brown or blue, black, brown

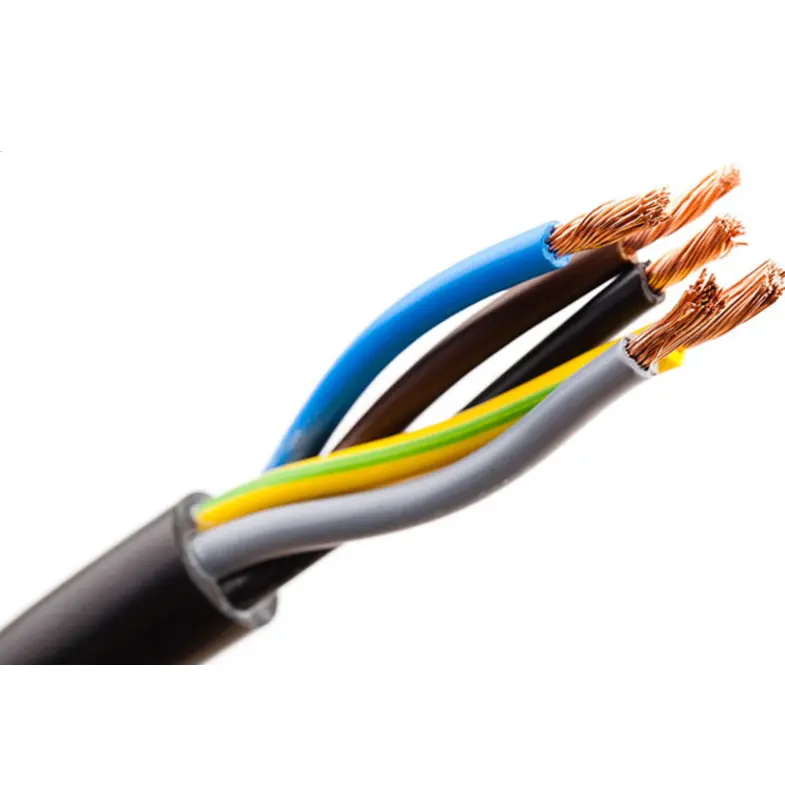

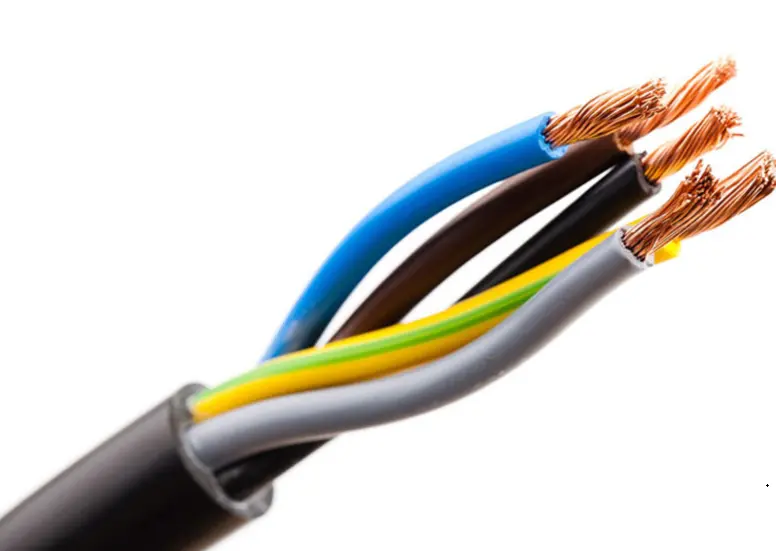

4 cores: green/yellow, blue, black, brown or blue, black, brown, grey
5 cores: green/yellow, blue, black, brown, grey or blue, black, brown, grey, black

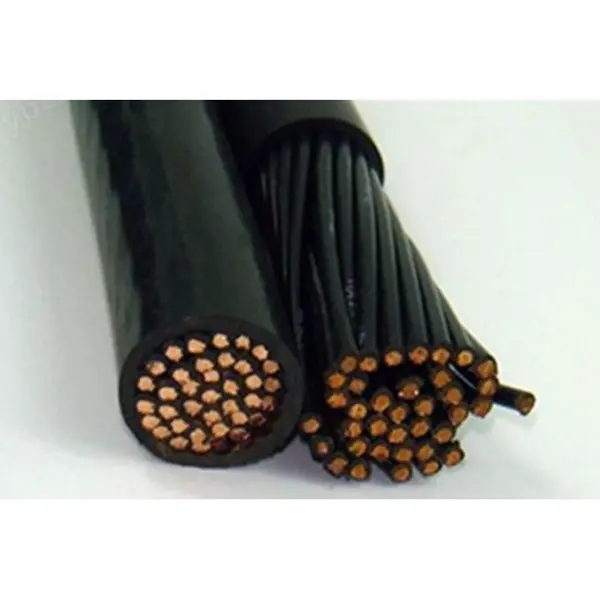

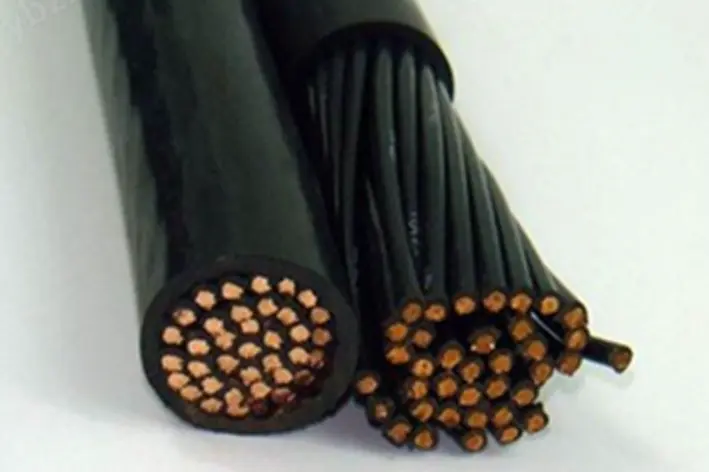

Above 5 coes: black cores with white number
Outer sheath: Sheath thickness, material property shall be as per GB/T 9330.
Flame-retradant cable: Flame-retardant PVC outer sheath material shall be used. The flame retardant grades can be classified into three categories: Bunch A, B, and C.
Rated voltage: 450/750 V
Test voltage: The power frequency test voltage shall be 3 kV, tested for 5 minutes without breakdown.
Maximum conductor operating temperature: 70 ºC
Short circuit temperature: +160 ºC
Conductor resistance: Meets the requirements of Class 5 copper conductors in GB/T 3956-2008 standard.
Flame retardant performance: According to customer requirements, it can meet the requirements of bundled A, bundled B, and bundled C classes respectively.
Test methods comply with IEC 60332 or GB/T 18380.
|
Item |
KVVR (Flexible Core Control Cable) |
KVV (Rigid Core Control Cable) |
RVV (Flexible Core Power Cable) |
|
Model Meaning |
K - Control Cable V - PVC Insulation V - PVC Sheath R - Flexible Structure |
K - Control Cable V - PVC Insulation V - PVC Sheath No R - Rigid Structure |
R - Flexible Structure V - PVC Insulation V - PVC Sheath |
|
Execution Standard |
GB/T 9330 |
GB/T 9330 |
GB/T 5023 |
|
Rated Voltage |
450/750V |
450/750V |
300/500V |
|
Conductor Structure |
Stranded fine copper wires (flexible core) |
Single thick copper wire (rigid core) |
Stranded fine copper wires (flexible core) |
|
Bending Radius Requirements |
Mobile installation: ≥6 times outer diameter; Fixed installation: ≥10 times outer diameter |
Fixed installation: ≥12 times outer diameter; Not suitable for mobile bending |
Mobile installation: ≥6 times outer diameter; Fixed installation: ≥10 times outer diameter |
|
Maximum Long-Term Operating Temperature |
≤70℃ |
≤70℃ |
≤70℃ |
|
Core Characteristics |
Soft and easy to bend, oil and wear resistant, suitable for frequent movement |
Stable structure, strong tensile strength, suitable for fixed installation |
Soft and easy to wire, strong current carrying capacity, used for power supply |
|
Core Differences |
Control cable + flexible core, suitable for mobile control scenarios |
Control cable + rigid core, suitable for fixed control scenarios |
Power cable + flexible core, only for power supply, not suitable for multi-core control signal transmission |
|
Typical application scenarios |
1. Industrial automation equipment (robots, CNC machine tools) 2. Mobile control circuits (stage lighting, medical equipment) 3. Building automation sensor/actuator connections |
1. Internal wiring of power distribution cabinets 2. Fixed control signal circuits (production line control cabinets, building low-voltage shafts) 3. Long-distance fixed control lines |
1. Power cords for household appliances 2. Power supply for small equipment (surveillance cameras, access control) 3. Temporary power cords |
Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
Port: Tianjin Port
Delivery: By Sea, By Air, By express.
