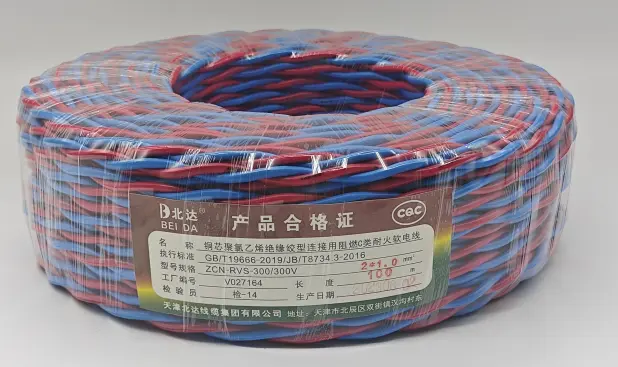

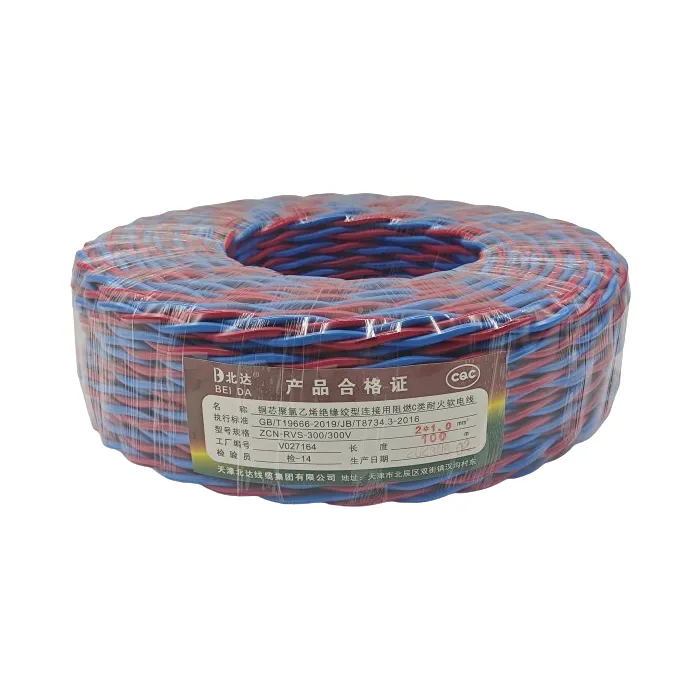

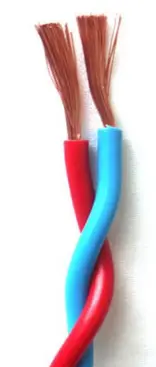

RVS PVC Insulated Twisted Flexible Wires

Tianjin Beida is a manufacturer and supplier of RVS PVC Insulated Twisted Flexible Wires in China. It is usually copper core PVC insulated stranded flexible cable, commonly known as "twisted pair" or "twisted pair". RVS cables are widely used in low voltage and control circuits, such as electrical wiring of appliances, control and signal circuits, fire alarm systems, and general purpose interconnects.

Send Inquiry

Product Description

In the field of electrical connections, RVS PVC Insulated Twisted Flexible Wires perform well. It is soft and flexible, easy to install, can meet the needs of household appliances, automation control systems, fire alarm devices and other complex wiring, providing reliable connection. The wire design is considerate, with a variety of core colors to choose from, which is convenient for installers to identify the circuit, reduce the risk of misconnection and improve installation efficiency.

Product structure:

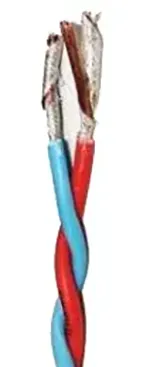

Rvs Pvc Insulated Twisted Flexible Wires

Certification and Standards

JB/T 8734.5-2016

Our advantages:

Choosing RVS PVC Insulated Twisted Flexible Wires means choosing an efficient, safe and environmentally friendly power transmission solution. We offer a full range of technical support and services, including customized cable solutions, flexible packaging options and fast delivery. Whether you need a large number of purchases or special customization, Beida Group can provide you with professional supporting services. We ensure a hassle-free purchasing experience through strict quality control, precise shipping arrangements and timely after-sales service. Contact us today to start your safe power system solution!

Dimension and Electrical Characteristic

Type	Nominal Area	Dimension						Electrical Characteristic
		Structure of Conductor	Fire-sistance layer			Insulation Thickness	Nominal Diameter	Conductor Resistance at 20 ℃ Max	Max Insulation Resistance at 70 ℃
		Structure of Conductor	material	Thickness	No.of layer	Insulation Thickness	Nominal Diameter	Conductor Resistance at 20 ℃ Max	Max Insulation Resistance at 70 ℃
	mm	No./mm	-	mm	n	mm	mm	Ω／km	MΩ·km
RVS 300/300V	2×0.75	40/0.15	-	-	-	0.8	5.4	26.00	0.014
	2×1	53/0.15	-	-	-	0.8	5.7	19.50	0.013
	2×1.5	79/0.15	-	-	-	0.8	6.3	13.3	0.012
	2×2.5	129/0.15	-	-	-	0.8	7.1	7.98	0.0095
	2×4	214/0.15	-	-	-	0.8	8.3	4.95	0.0079
ZN-RVS 300/300V	2×0.75	40/0.15	Mica	0.14	2	0.8	7.1	26.00	0.014
	2×1	53/0.15	Mica	0.14	2	0.8	7.4	19.50	0.013
	2×1.5	79/0.15	Mica	0.14	2	0.8	8.0	13.3	0.012
	2×2.5	129/0.15	Mica	0.14	2	0.8	8.8	7.98	0.0095
	2×4	214/0.15	Mica	0.14	2	0.8	9.9	4.95	0.0079

Beida Group has been committed to technological innovation and product research and development, and the annual R & D expenditure has reached 3.1% of sales revenue. We have a number of independent intellectual property rights, leading production equipment from Finland, Germany and other internationally renowned manufacturers, to ensure the superior quality of products. We also have a number of professional laboratories to provide high temperature, low temperature, high pressure and other performance testing to ensure that each cable can pass strict quality testing. Through our technical support and innovative capabilities, you will receive the most reliable electrical connection solutions to ensure long-term stable power transmission.
