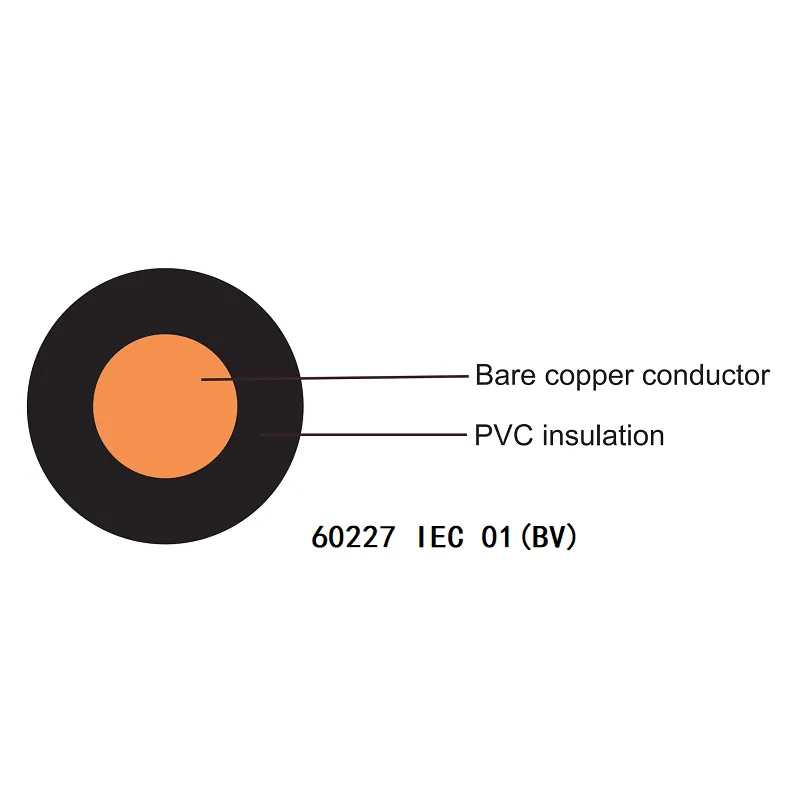

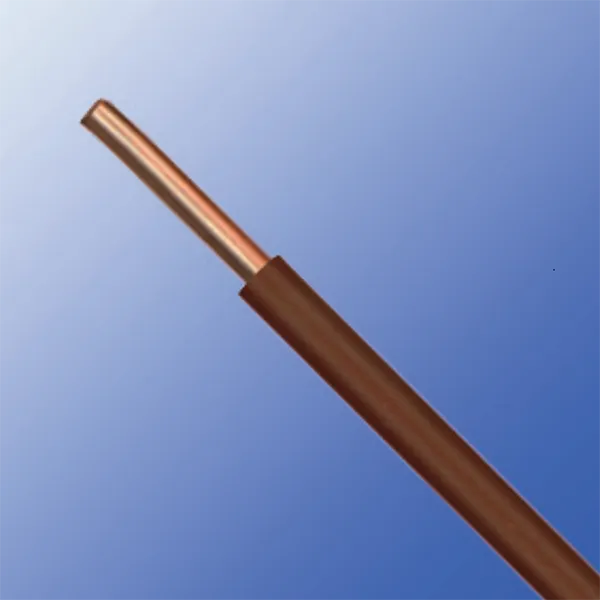

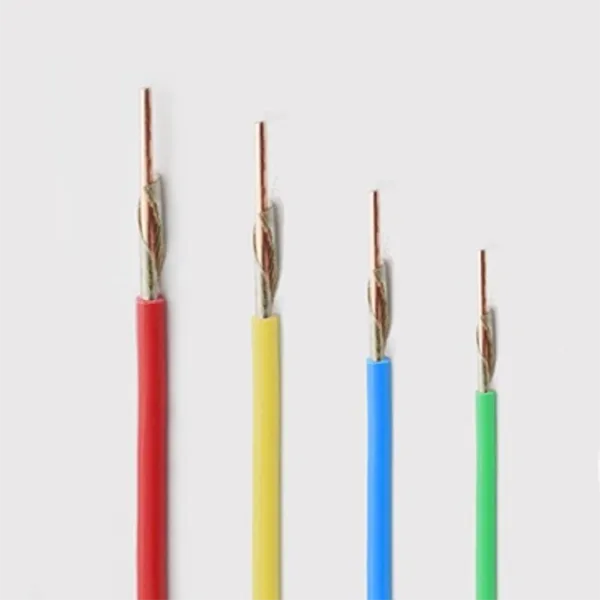

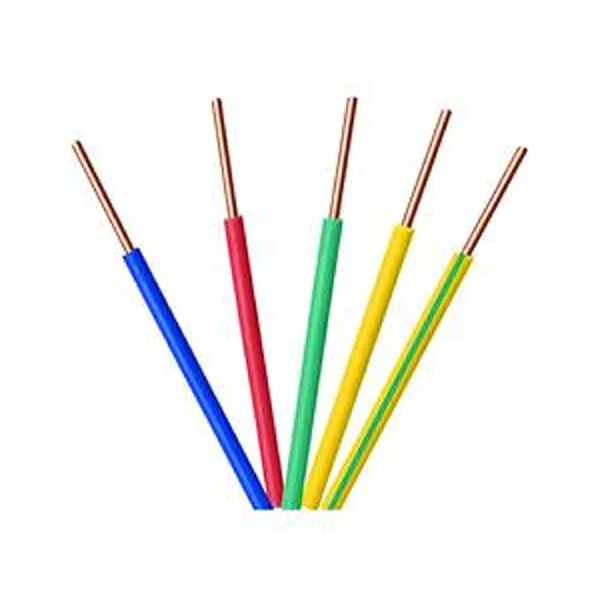

Beida IEC 60227 Single Core PVC Cable consists of T1R copper conductor and lead-free PVC insulation layer, conforming to IEC standard, GB standard, British standard, etc. The cable is CE certified and has excellent electrical and mechanical physical properties. Depending on customer requirements, these cables are subjected to IEC 60332-1 single vertical flame propagation test or IEC 60332-3 bundle (category A, B, C, D) flame propagation test.
|
Type |
Conductor |
Insulation |
Electrical Characteristic |
|||
|
Nominal Area |
Structure of Conductor |
Insulation Thickness |
Overall Diameter |
Conductor Resistance at 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Max |
Ω／km |
|
|
60227IEC05 60227IEC05(BV) |
0.5 |
1/0.80 |
0.6 |
1.9 |
2.3 |
39.0 |
|
0.75 |
1/0.97 |
0.6 |
2.1 |
2.5 |
26.0 |
|
|
1 |
1/1.13 |
0.6 |
2.2 |
2.7 |
19.50 |
|
|
60227IEC06 60227IEC06(RV) |
0.5 |
16/0.20 |
0.6 |
2.1 |
2.5 |
39.00 |
|
0.75 |
24/0.20 |
0.6 |
2.2 |
2.7 |
26.00 |
|
|
1 |
32/0.20 |
0.6 |
2.4 |
2.8 |
19.50 |
|
|
Type |
Conductor |
Insulation Conductor |
Electrical Characteristic |
|||
|
Nominal Area |
Structure of Conductor |
Insulation Thickness |
Overall Diameter |
Conductor Resistance at 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Max |
Ω／km |
|
|
60227IEC01 60227IEC01(BV) |
1.5 |
1/1.38 |
0.7 |
2.6 |
3.2 |
12.1 |
|
2.5 |
1/1.78 |
0.8 |
3.2 |
3.9 |
7.41 |
|
|
4 |
1/2.25 |
0.8 |
3.6 |
4.4 |
4.61 |
|
|
6 |
1/2.76 |
0.8 |
4.1 |
5 |
3.08 |
|
|
1.5 |
7/0.52 |
0.7 |
2.7 |
3.3 |
12.1 |
|
|
2.5 |
7/0.67 |
0.8 |
3.3 |
4 |
7.41 |
|
|
4 |
7/0.84 |
0.8 |
3.8 |
4.6 |
4.61 |
|
|
6 |
7/1.03 |
0.8 |
4.3 |
5.2 |
3.08 |
|
|
10 |
7/1.32 |
1.0 |
5.6 |
6.7 |
1.83 |
|
|
16 |
7/1.67 |
1 |
6.4 |
7.8 |
1.15 |
|
|
25 |
7/2.10 |
1.2 |
8.1 |
9.7 |
0.727 |
|
|
35 |
7/2.47 |
1.2 |
9 |
10.9 |
0.524 |
|
|
50 |
19/1.75 |
1.4 |
10.6 |
12.8 |
0.387 |
|
|
70 |
19/2.10 |
1.4 |
12.1 |
14.6 |
0.268 |
|
|
95 |
19/2.48 |
1.6 |
14.1 |
17.1 |
0.193 |
|
|
120 |
37/2.00 |
1.6 |
15.6 |
18.8 |
0.153 |
|
|
150 |
37/2.22 |
1.8 |
17.3 |
20.9 |
0.124 |
|
|
185 |
37/2.48 |
2 |
19.3 |
23.3 |
0.0991 |
|
|
240 |
61/2.22 |
2.2 |
22 |
26.6 |
0.0754 |
|
|
60227IEC02 60227IEC02(RV) |
1.5 |
30/0.24 |
0.7 |
2.8 |
3.4 |
13.3 |
|
2.5 |
49/0.24 |
0.8 |
3.4 |
4.1 |
7.98 |
|
|
4 |
56/0.29 |
0.8 |
3.9 |
4.8 |
4.95 |
|
|
6 |
83/0.29 |
0.8 |
4.4 |
5.3 |
3.30 |
|
|
10 |
74/0.40 |
1.0 |
5.7 |
6.8 |
1.91 |
|
|
16 |
117/0.40 |
1 |
6.7 |
8.1 |
1.21 |
|
|
25 |
182/0.40 |
1.2 |
8.4 |
10.2 |
0.78 |
|
|
35 |
256/0.40 |
1.2 |
9.7 |
11.7 |
0.554 |
|
|
50 |
367/0.40 |
1.4 |
11.5 |
13.9 |
0.386 |
|
|
70 |
320/0.51 |
1.4 |
13.2 |
16 |
0.272 |
|
|
95 |
423/0.51 |
1.6 |
15.1 |
18.2 |
0.206 |
|
|
120 |
541/0.51 |
1.6 |
16.7 |
20.2 |
0.161 |
|
|
150 |
675/0.51 |
1.8 |
18.6 |
22.5 |
0.129 |
|
|
185 |
822/0.51 |
2 |
20.6 |
24.9 |
0.106 |
|
|
240 |
1088/0.51 |
2.2 |
23.5 |
28.4 |
0.0801 |
|
|
Type |
Conductor |
Insulation Conductor |
Electrical Characteristic |
|||
|
Nominal Area |
Structure of Conductor |
Insulation Thickness |
Overall Diameter |
Conductor Resistance at 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Max |
Ω／km |
|
|
BVR |
2.5 |
19/0.40 |
0.8 |
- |
4.1 |
7.41 |
|
4 |
19/0.51 |
0.8 |
- |
4.8 |
4.61 |
|
|
6 |
19/0.63 |
0.8 |
- |
5.3 |
3.08 |
|
|
10 |
49/0.51 |
1.0 |
- |
7.3 |
1.83 |
|
|
16 |
49/0.63 |
1.0 |
- |
8.6 |
1.15 |
|
|
25 |
117/0.51 |
1.2 |
- |
10.2 |
0.727 |
|
|
35 |
163/0.51 |
1.2 |
- |
11.7 |
0.524 |
|
|
50 |
147/0.63 |
1.4 |
- |
13.9 |
0.387 |
|
|
70 |
209/0.63 |
1.4 |
- |
16 |
0.268 |
|
|
95 |
294/0.63 |
1.6 |
- |
18.2 |
0.193 |
|
|
120 |
369/0.63 |
1.6 |
- |
20.2 |
0.153 |
|
|
150 |
456/0.63 |
1.8 |
- |
22.5 |
0.124 |
|
|
185 |
570/0.63 |
2.0 |
- |
24.9 |
0.0991 |
|
450/750V：60227 IEC 01、60227 IEC 01（BV）、60227 IEC 02、60227 IEC 02（RV）、BVR
300/500V: 60227 IEC 05、60227 IEC 05（BV）、60227 IEC 06、60227 IEC 06（RV）
testing voltage:
2500V：60227 IEC 01、60227 IEC 01（BV）、60227 IEC 02、60227 IEC 02（RV）、BVR
2000V：60227 IEC 05、60227 IEC 05（BV）、60227 IEC 06、60227 IEC 06（RV）
operating temperature: -5°C to +70°C
bending radius:
12.5 x Ø：60227 IEC 02、60227 IEC 02（RV）、60227 IEC 06、60227 IEC 06（RV）、BVR
15 x Ø：60227 IEC 01、60227 IEC 01（BV）、60227 IEC 05、60227 IEC 05（BV）
short-circuit temperature: +160 ºC
Flame retardant performance: vertical flame spread test for single conductor and vertical flame spread test for vertically installed bundled conductors or cables (Class A, B, C, D), which shall comply with IEC 60332, GB/T 19666, GB/T 18380 standards and meet customer requirements.
Fire performance: 750°C for 90 minutes, in accordance with IEC 60331, GB/T 19666, GB/T 19216 standards
Package Details
Specific quantity and requirements are up to you to decide, prices can be negotiated.
Port: Tianjin Port Mode of transport: sea, air, express.
