XLPE Insulated PVC Sheathed Non-armored Power Cable

XLPE Insulated PVC Sheathed Non-armored Power Cables are insulated with XLPE material, which has excellent heat resistance, corrosion resistance and current shock resistance. In the harsh working environment, it can still operate stably to ensure the long-term safe operation of the power system. Products with high mechanical damage resistance, suitable for power, metallurgy, petrochemical and other industries complex environmental needs. Whether it is urban construction, underground power laying, or high-voltage power transmission for industrial facilities, Beida Power Cable provides comprehensive protection for your power safety.

Product Structure

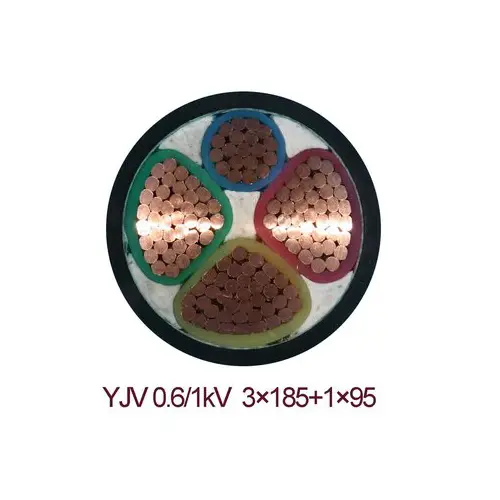

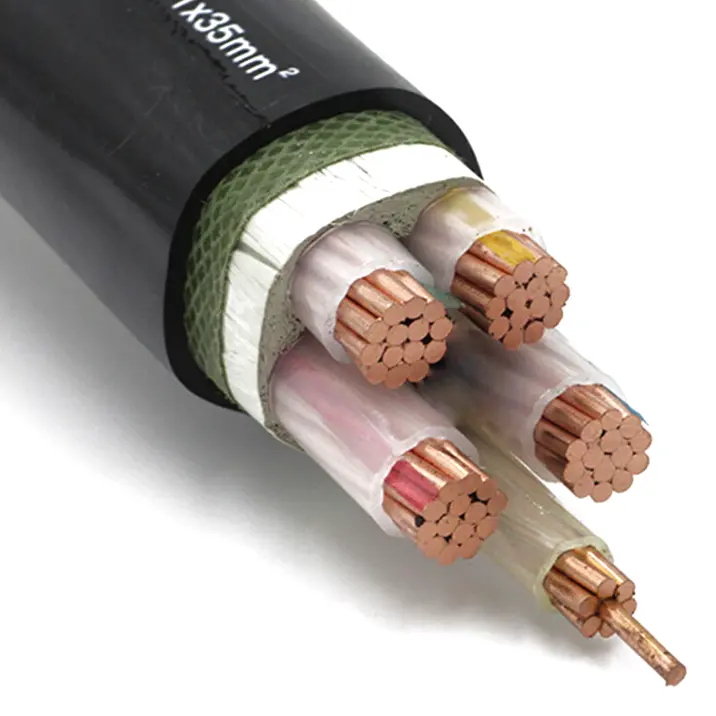

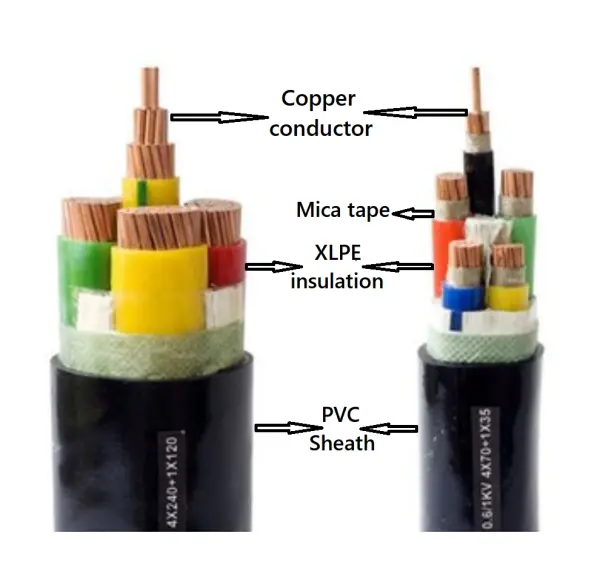

XLPE Insulated PVC Sheathed Non-armored Power Cable is composed of a T1R copper conductor , XLPE insulation and PVC sheath.

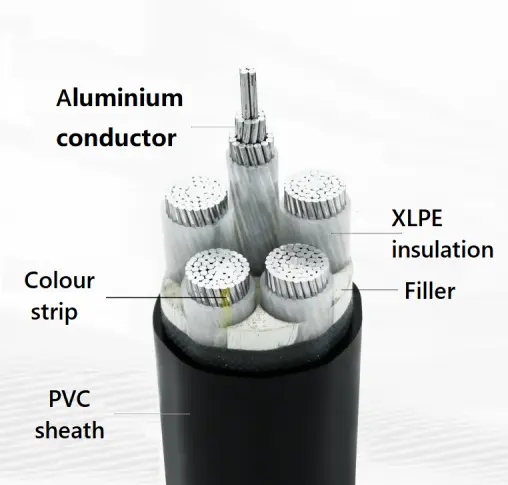

Conductor: Copper or Aluminium conductor , round standed or Shaped, Class 2 to IEC 60228

and GB/T 3956-2008, For cross-section area is not more than 6mm², a solid round

conductor may be used, Class 1 to IEC 60228 and GB/T 3956-2008.

Insulation: Insulation thickness, material property shall be as per IEC 60502 and GB/T 12706.

Core Colour: 1 core: red or yellow or green or blue or black

2 cores: red, blue or red, black

3 cores: yellow, green, red or red, yellow, blue

4 cores: yellow, green, red, blue or red, yellow, blue, black

5 cores: yellow, green, red, blue, black or red, yellow, blue, black, green

Above 5 coes: white cores with black number or

Outer sheath: Sheath thickness, material property shall be as per IEC 60502 and GB/T 12706.

Flame-retradant cable: Flame-retardant PVC outer sheath material shall be used. The flame retardant grades can be classified into three categories: Bunch A, B, and C.

Fire-resistance cable: Two layer of Mica tape shall be wound around the conductor.

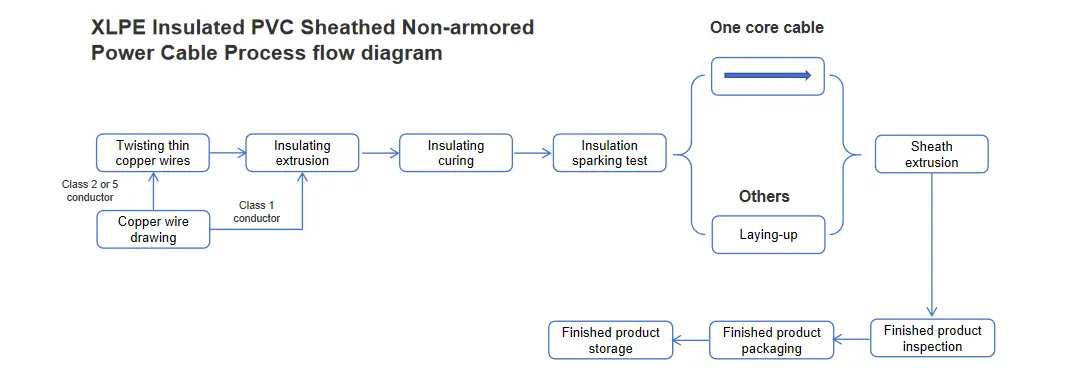

Process flow diagram

Product Application

It is used for urban power distribution and transmit low-voltage electrical energy.

It is used in factories, mines and other places to supply power to machinery equipment and lighting installations.

In residential and commercial buildings, it is used for the distribution of electricity within the structure, such as lighting, elevators, sockets, etc.

Precautions

The long-term operating temperature of the cable must not exceed 90º C.

During a short circuit, the maximum temperature of the cable must not exceed 250º C.

Cables must not be used beyond the rated voltage.

This type of cable cannot be directly buried underground for use.

Single-core cables cannot be directly placed in magnetic metal pipes or in cable trays with covers.

The cables must not be used beyond the rated voltage.

Performance parameter

Rated voltage: 0.6/1 kV

Test voltage: 3.5kV for 5 minutes no brokendown occured

Conductor Resistance: 20℃ conductor resistance shall be comply with IEC 60228 or GB/T 3956.

Working temperature: -5º C to +90º C

Short circuit temperature: +250 ºC

Minimum Flexing Bending radius: 15* OD;

Minimum Static Bending radius: 10* OD;

Flame retardant: according to IEC 60332 or GB/T 19666

Fire-resistance: as per IEC 60331 or GB/T 19666.

Current-carrying capacity in amperes（A）

After-sales and Services

1. Technical Services: Tianjin Beida Group can provide necessary technical services based on the actual demands of customers, such as technical guidance on the selection of wires and cables, laying and installation, on-site testing, etc.

2. Quality issue handling: Upon receiving feedback from users regarding the quality problems of electrical wires and cables, BD Cable Group will provide a response within 24 hours. Based on the actual situation on site, we will offer solutions to the problems or dispatch professional technicians to the site to handle the quality issues.

3. Maintenance or replacement of electrical wires and cables: During the warranty period of the electrical wires and cables, if any quality issues occur due to product quality defects in the materials, design, or production and manufacturing process of the wires and cables, and these issues arise during normal storage, laying, installation, or normal use, the company will be responsible for free repair or replacement.

4. During the transportation and installation process of the electrical wires and cables, for any damage to the cables caused by improper use by the users (such as scratches, abrasions, insufficient bending radius resulting in damage to the insulation and sheath, and quality problem from the cable laying at the low-temperature , etc.) , the Beida Group will assist the customers in resolving these quality issues.
