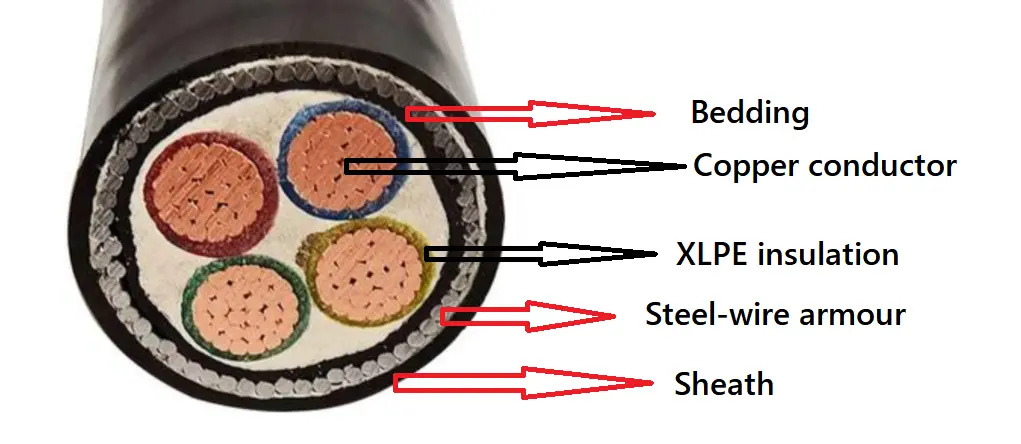

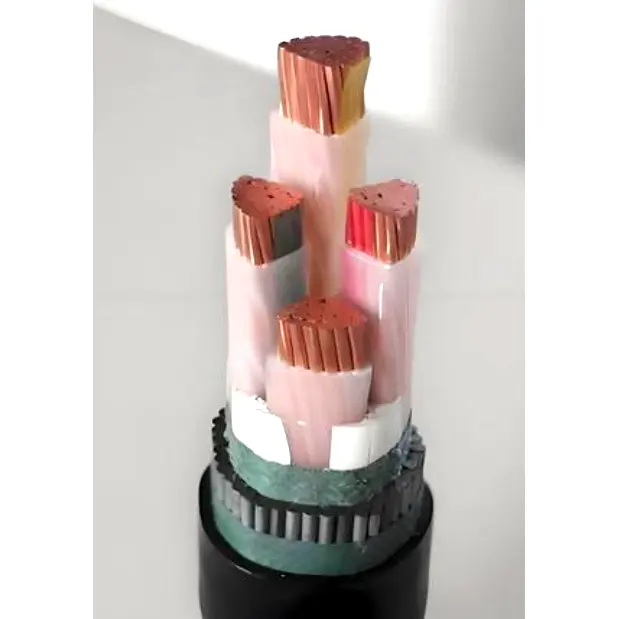

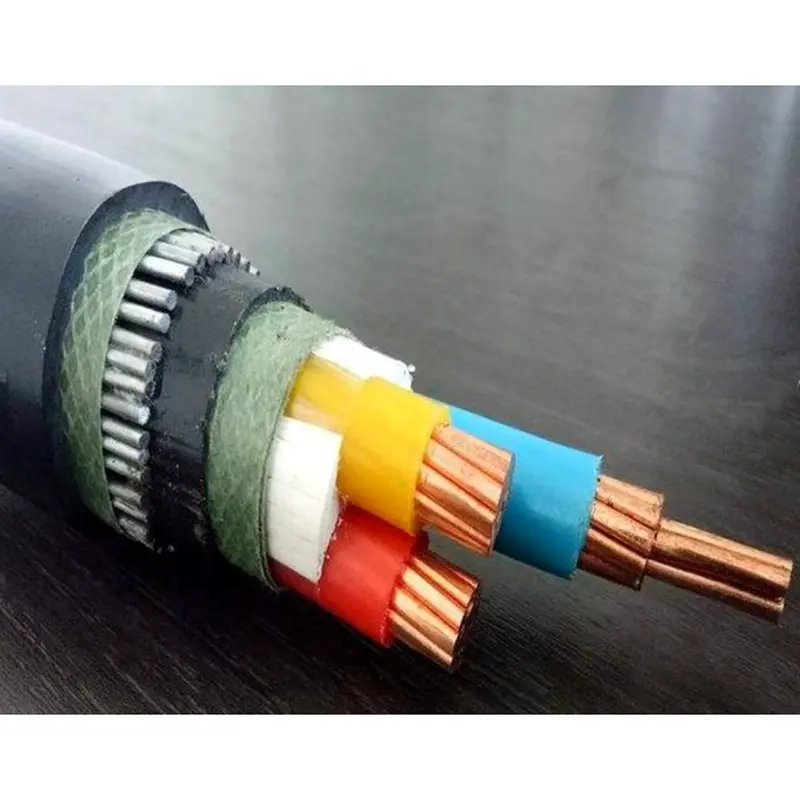

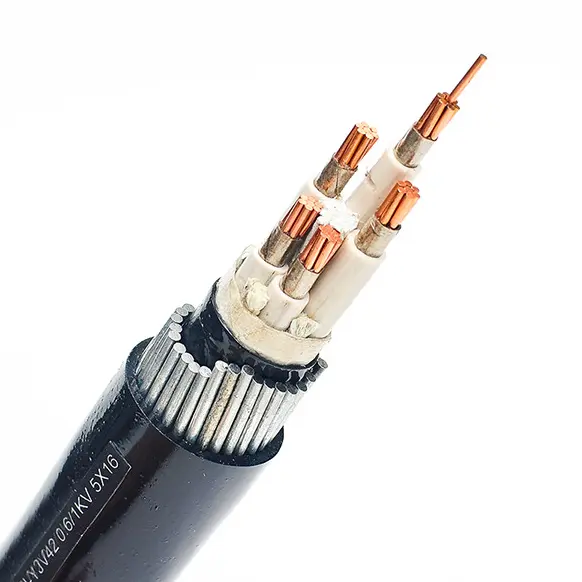

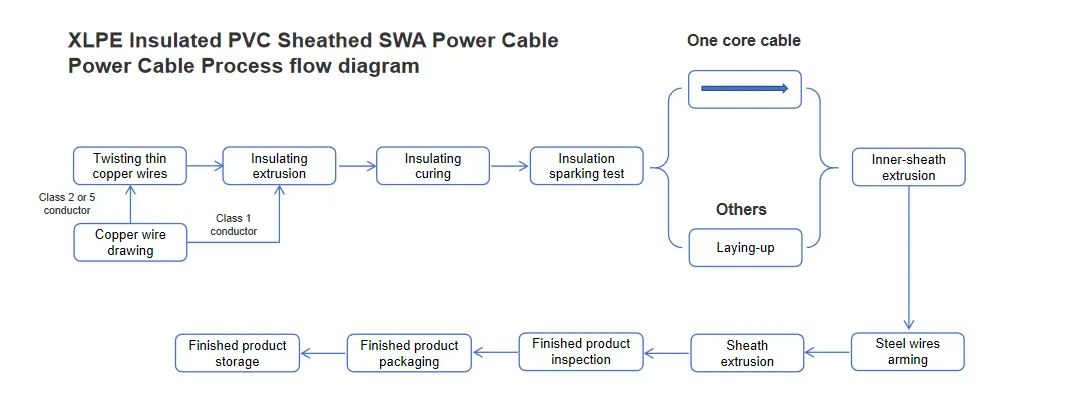

XLPE Insulated PVC Sheathed SWA Power Cable is composed of a T1R copper conductor , XLPE insulation, PVC wrapping tape Steel-weirs armour and PVC sheath.
Common cable types are YJV32, ZC-YJV32, ZB-YJV 32, ZA-YJV 32, ZCN-YJV 32, ZBN-YJV32, ZCN-YJV32, CU/XLPE/PVC/SWA/PVC, CU/MICA/XLPE/PVC/SWA/PVC.
XLPE Insulated PVC Sheathed SWA Power Cable is composed of a T1R copper conductor , XLPE insulation, PVC wrapping tape Steel-weirs armour and PVC sheath.
Conductor: Copper or Aluminium conductor , round standed or Shaped, Class 2 to IEC 60228
and GB/T 3956-2008, For cross-section area is not more than 6mm2, a solid round
conductor may be used, Class 1 to IEC 60228 and GB/T 3956-2008.
Insulation: Insulation thickness, material property shall be as per IEC 60502 and GB/T 12706.
Core Colour: 1 core: red or yellow or green or blue or black
2 cores: red, blue or red, black
3 cores: yellow, green, red or red, yellow, blue
4 cores: yellow, green, red, blue or red, yellow, blue, black
5 cores: yellow, green, red, blue, black or red, yellow, blue, black, green
Above 5 coes: white cores with black number or different colored ribbon
Inner coverings: The inner coverings may be extruded or lapped. The materials shall be suitable for the operating temperature of the cable and compatible with the insulating material.
Steel-wires armour: In the multicore cables, the armour shall be applied on an inner covering complying steel wires. The single-core cables for use on a.c. systems shall consist of non-magnetic steel wires.
Outer sheath: Sheath thickness, material property shall be as per IEC 60502 and GB/T 12706.
Flame-retradant cable: Flame-retardant PVC outer sheath material shall be used. The flame retardant grades can be classified into three categories: Bunch A, B, and C.
Fire-resistance cable: Two layer of Mica tape shall be wound around the conductor.
Rated voltage: 0.6/1 kV
Test voltage: 3.5kV for 5 minutes no brokendown occured
Working temperature: -5º C to +90 ºC
Short circuit temperature: +250 ºC
Minimum Flexing Bending radius: 15* OD;
Minimum Static Bending radius: 10* OD;
Cable test:
1. Conductor DC resistance test: 20ºC conductor DC resistance shall comply with GB/T 3956-2008, IEC 60228.
2. AC voltage test: 3.5kV/5min, no breakdown.
Sampling test:
1. Conductor structure inspection: It shall comply with the technical requirements of GB/T 3956-2008, IEC 60228.
2. The size of insulation, lining, steel tape armor and sheath structure shall comply with the requirements of GB/T 12706.1-2020, IEC 60502.1.
Thermal elongation test:
The sampling and test procedures shall comply with the provisions of GB/T 2951.21-2008, IEC 60811-2-1, Chapter 9, and the results shall comply with the provisions of GB/T 12706.1-2020, IEC 60502.1.
Type test:
The mechanical and physical performance test of insulation and sheath shall comply with the requirements of GB/T 12706.1-2020 and IEC 60502.1.
Electrical performance shall comply with GB/T 12706.1-2020, IEC 60502.1
The single cable burning test shall comply with GB/T 19666-2019, IEC 60332.
The bundled flame retardant test of the cable meets the requirements of GB/T 19666-2019, IEC 60332.
The fire resistance test of cables shall comply with the requirements of GB/T 19666-2019 and IEC 60331.
Current-carrying capacity in amperes（A）
|
Rated voltage 0.6/1kV XLPE insulation power cable |
|||||||||
|
current-carrying capacity in amperes（A） |
|||||||||
|
Ambient temperature：in air：40℃，in ground：25℃ |
|||||||||
|
Conductor temparature：90℃ |
|||||||||
|
Soil thermal resistance coefficient：1.0k·m/W |
|||||||||
|
Type |
CU/XLPE/PVC, AL/XLPE/PVC, CU/XLPE/PVC/STA/PVC, AL/XLPE/PVC/STA/PVC, CU/XLPE/PVC/AWA/PVC, AL/XLPE/PVC/AWA/PVC |
|
CU/XLPE/PVC, AL/XLPE/PVC, CU/XLPE/PVC/STA/PVC, AL/XLPE/PVC/STA/PVC, CU/XLPE/PVC/SWA/PVC, AL/XLPE/PVC/SWA/PVC |
||||||
|
Number of core |
Single core |
|
Multi cores |
||||||
|
Cross-section area,mm2 |
In air |
In ground |
|
In air |
In ground |
||||
|
Cu |
Al |
Cu |
Al |
|
Cu |
Al |
Cu |
Al |
|
|
1.5 |
27 |
— |
40 |
— |
|
21 |
— |
27 |
— |
|
2.5 |
37 |
28 |
54 |
41 |
|
26 |
21 |
33 |
27 |
|
4 |
51 |
39 |
72 |
56 |
|
34 |
26 |
43 |
32 |
|
6 |
65 |
52 |
92 |
74 |
|
44 |
35 |
56 |
42 |
|
10 |
92 |
70 |
125 |
95 |
|
56 |
45 |
70 |
54 |
|
16 |
120 |
94 |
165 |
130 |
|
77 |
59 |
94 |
69 |
|
25 |
160 |
120 |
215 |
165 |
|
100 |
78 |
120 |
90 |
|
35 |
195 |
150 |
260 |
200 |
|
130 |
100 |
155 |
115 |
|
50 |
240 |
185 |
315 |
240 |
|
160 |
125 |
185 |
135 |
|
70 |
300 |
235 |
390 |
300 |
|
195 |
150 |
220 |
165 |
|
95 |
370 |
285 |
470 |
365 |
|
245 |
190 |
270 |
200 |
|
120 |
430 |
335 |
540 |
415 |
|
300 |
230 |
320 |
240 |
|
150 |
495 |
385 |
605 |
470 |
|
350 |
270 |
365 |
275 |
|
185 |
575 |
445 |
690 |
535 |
|
400 |
310 |
410 |
310 |
|
240 |
680 |
530 |
805 |
625 |
|
465 |
360 |
465 |
355 |
|
300 |
790 |
610 |
905 |
705 |
|
550 |
430 |
540 |
410 |
|
400 |
925 |
725 |
1045 |
815 |
|
— |
— |
— |
— |
|
500 |
1075 |
845 |
1185 |
935 |
|
— |
— |
— |
— |
|
630 |
1245 |
995 |
1345 |
1075 |
|
— |
— |
— |
— |
|
Note:The armor of single-core cables is made of non-magnetic materials. |
|||||||||
Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
Port: Tianjin Port
Delivery: By Sea, By Air, By express.
