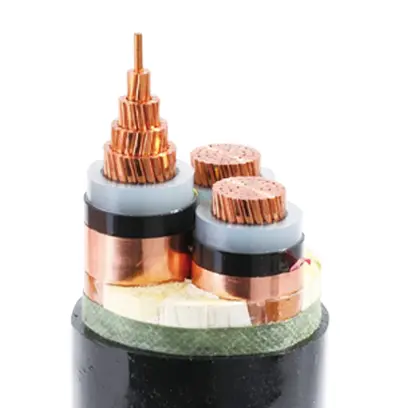

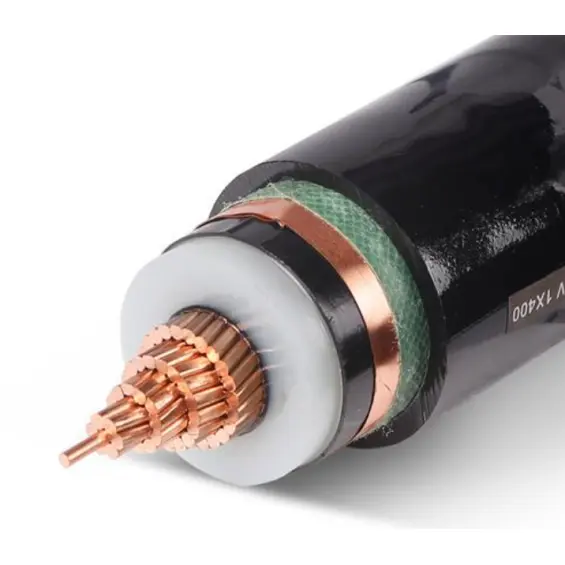

XLPE Insulated PVC Sheathed Non-armored MV Cable

Tianjin Beida is a China XLPE Insulated PVC Sheathed Non-armored MV Cable manufacturer and supplier. These cables are widely used in power systems. It serves as the "power artery" of urban power grids, industrial and mining enterprises and high-rise buildings, and it can transmit 10,35 kV high-voltage electricity from substations to various power terminals.

Selection of medium voltage cables

1. Select according to voltage level, commonly used cable level is 3.6/6 kV， 6/10 kV， 8.7/15kV，12/20 kV，18/30 kV；26/35 kV

2. Select according to the power of the equipment or the current transmitted, calculate the current that the equipment needs to use according to the power of the equipment, and then select according to the cable ampacity table. In addition, it is necessary to calculate the voltage drop of the cable using the length of the cable, and the voltage drop cannot exceed 5%.

Product Structure

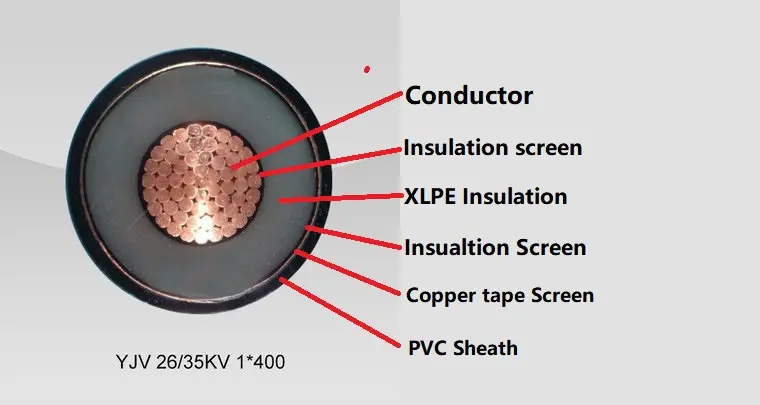

XLPE Insulated PVC Sheathed Non-armored MV Cable is composed of a T1R copper conductor , XLPE insulation, PVC wrapping tape Steel-tape armour and PVC sheath.

Conductor: Copper or Aluminium conductor , round standed or Shaped, Class 2 to IEC 60228

and GB/T 3956-2008.

Insulation: XLPE insulated ，Insulation thickness, material property shall be as per IEC 60502-2 and GB/T 12706.2，GB/T 12706.3.

Conductor shield: Conductor shield shall be composed of extruded semiconductive nonmetallic material, and extruded semiconductive material shall be closely bonded with insulation.

Insulation shield: Insulation shield shall be composed of non-metallic semiconductive layer and metal layer. Each insulated wire core shall be directly extruded with non-metallic semiconductive layer tightly combined with insulated wire core or peelable. Then, metal shield layer shall be overlapped outside non-metallic semiconductive layer, and the requirements of IEC 60502-2, GB/T 12706.2 and GB/T 12706.3 shall be met.

Outer sheath: PVC sheath Sheath thickness, material property shall be as per IEC 60502.2 and GB/T 12706.

Flame-retradant cable: Flame-retardant PVC outer sheath material shall be used. The flame retardant grades can be classified into three categories: Bunch A, B, and C.

Performance parameter

Rated voltage: 3.6/6 kV to 18/30 kV; 26/35 kV

Test voltage: The power frequency test voltage shall be 3.5U0, and the test shall be conducted for 5 minutes without breakdown.

Maximum operating temperature of conductor: 90 ºC

Short circuit temperature: +250 ºC

Insulation thickness:

Cable comprehensive test, quality assurance worry-free!

In routine test, conductor DC resistance, AC voltage and partial discharge are strictly in accordance with national standards and IEC standards to ensure excellent performance. In sampling test, conductor structure, insulation sheath size and thermal elongation are up to standard, and the quality is reliable. The type test is more comprehensive, covering the mechanical and physical properties of the insulation sheath, electrical properties, and single and bundled flame retardant tests, all in line with GB/T and IEC standards, for your cable safety escort!

Product installation conditions:

XLPE Insulated PVC Sheathed Non-armored MV Cable, installation ambient temperature should not be lower than 0º.

Minimum bend radius of cable at installation

Buy now for safer, more efficient power transmission

The choice of cross-linked polyethylene insulated PVC sheathed unarmored power cable is not only a commitment to high quality, but also a guarantee for long-term stable operation. The durability, low maintenance costs and high transmission efficiency of this cable can bring considerable cost savings to enterprises and significantly improve the overall efficiency of the power system. Long-term use of the cable can greatly reduce the maintenance and replacement costs caused by power failure, thus providing a higher return on investment for enterprises.
