BS 6346 Power Cable

Tianjin Beida is a China BS 6346 Power Cable manufacturer and supplier. This kind of cable can be used for power supply and control lines in low voltage systems. The cable is insulated and sheathed by PVC and protected by steel wire armor. The cable can withstand tension and pressure. It can be installed inside buildings or buried directly underground.

Send Inquiry

Product Description

As a professional manufacturer, Beida's BS 6346 power cable adopts advanced PVC insulation and sheath materials, with steel wire armor design, which can effectively resist external tension and pressure to ensure long-term stable operation of the cable. BS 6346 power cables offer a high level of safety and stability, whether installed inside buildings or buried directly underground. Its copper conductor, PVC cushion and steel wire armor design enable the cable to withstand physical pressure in complex environments, ensure the normal operation of power systems, and solve the problem that traditional power cables are easily damaged in harsh environments.

Product Structure

Bs 6346 Power Cable

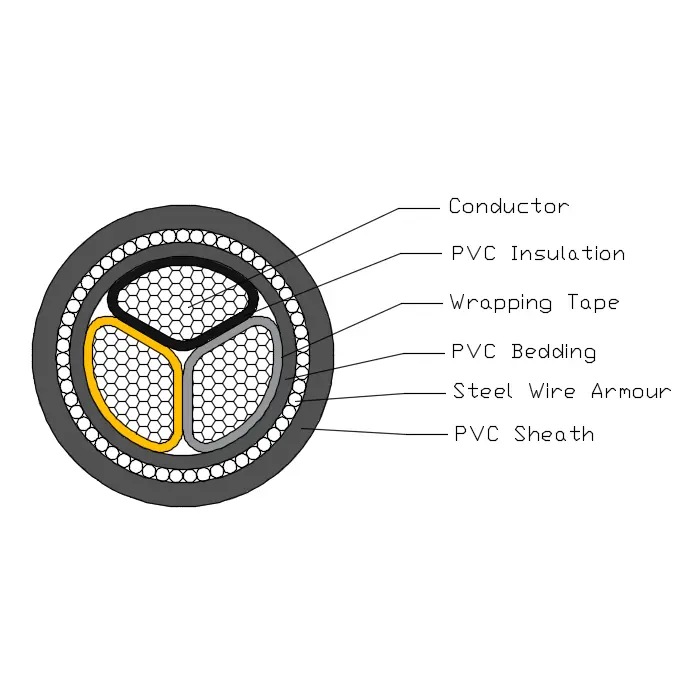

BS 6346 Power Cable is composed of a T1R copper conductor , PVC insulation, PVC bedding, Steel-weirs armour and PVC sheath.

Conductor: Solid Copper or Aluminium conductor , circular or Shaped, Class 2 to BS EN 60228.

Insulation: PVC Type GP8 as per BS 7655-1.3

Core Colour: 1 core: borwn or blue

2 cores: borwn, blue

3 cores: borwn, black, Grey

4 cores: blue, borwn, black, Grey

5 cores:green/yellow, blue, borwn, black, Grey

Above 5 coes: white cores with black number

Bedding: The bedding shall be extruded LSOH polymeric material consistent consistent with the operating temperature of the cable.

Steel-wires armour: Single core cable: aluminum wire armour

Multi core cable: steel wire armour

Outer sheath: The sheath shall be extruded PVC Type TM1 material specified in BS 7655.

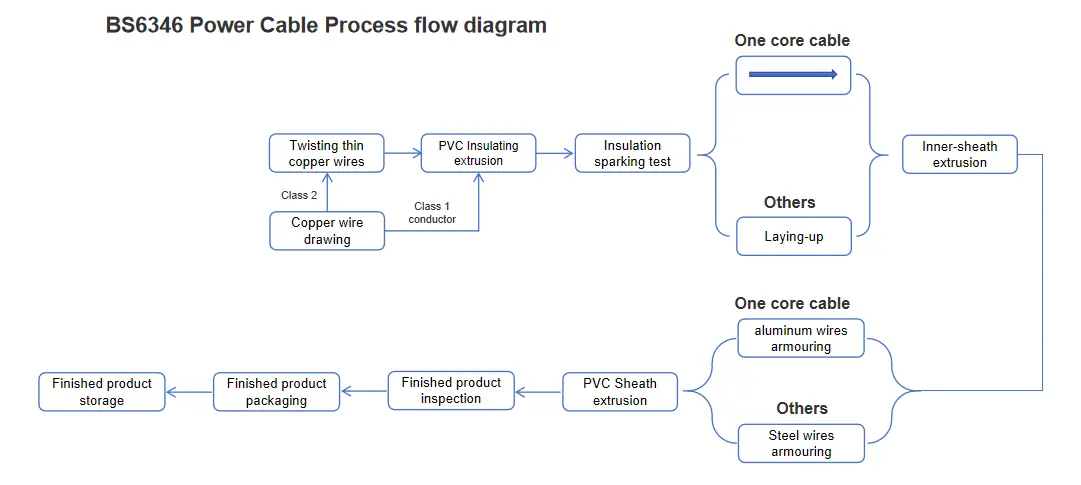

Process flow diagram

Bs 6346 Power Cable

Performance parameter

Rated voltage: 600/1000kV

Test voltage: 3.5kV for 5 minutes no brokendown occured

Working temperature: 0º C to +60 ºC

Short circuit temperature: +160 ºC

Minimum Bending radius: 12* OD;

Flame-retradant: BS EN 60332-1-2

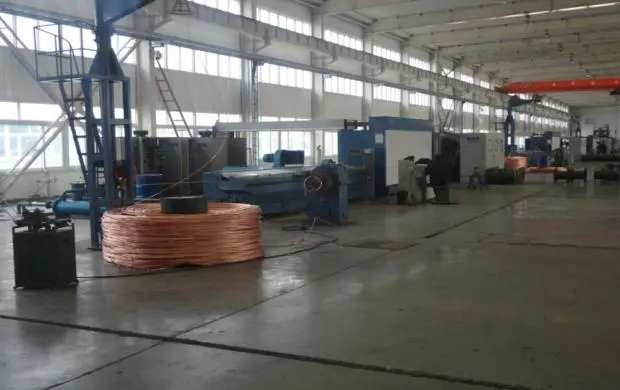

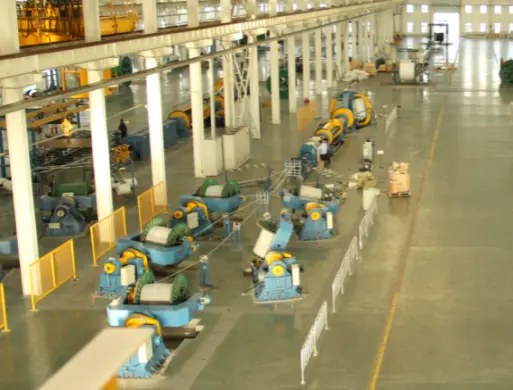

production and inspection equipment

drawing machine

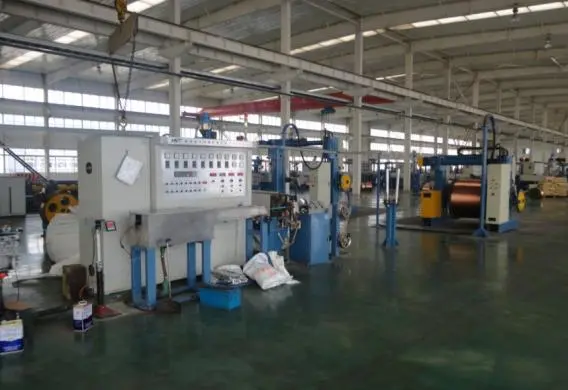

insulation extruder

cable-former

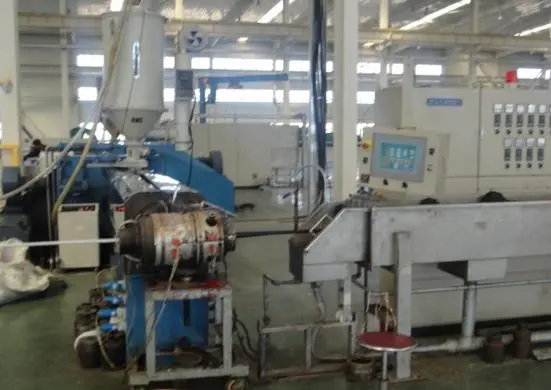

sheath extruder

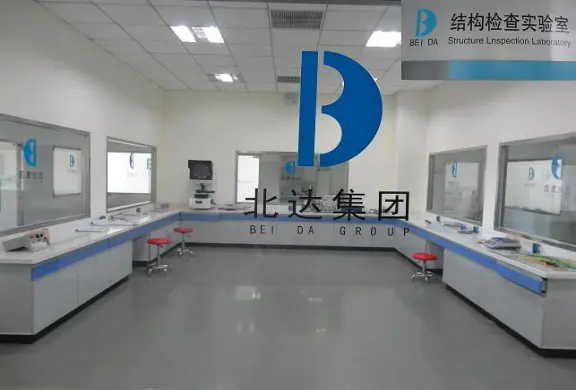

structural and electrical performance laboratory

heat aging chamber

Current-carrying capacity in amperes（A）

Rated voltage 0.6/1kV PVC insulation power cable current-carrying capacity in amperes（A）Ambient temperature：in air：40℃，in ground：25℃ Conductor temparature：70℃ Soil thermal resistance coefficient：1.0k·m/W
Rated voltage 0.6/1kV PVC insulation power cable current-carrying capacity in amperes（A）Ambient temperature：in air：40℃，in ground：25℃ Conductor temparature：70℃ Soil thermal resistance coefficient：1.0k·m/W
Type	CU/PVC/PVC, AL/PVC/PVC, CU/PVC/PVC/STA/PVC, AL/PVC/PVC/STA/PVC, CU/PVC/PVC/AWA/PVC, AL/PVC/PVC/AWA/PVC				CU/PVC/PVC, AL/PVC/PVC, CU/PVC/PVC/STA/PVC, AL/PVC/PVC/STA/PVC, CU/PVC/PVC/SWA/PVC, AL/PVC/PVC/SWA/PVC
Number of core	Single core				Multi cores
Cross-section area,mm²	In air		In ground		In air		In ground
Cross-section area,mm²	Cu	Al	Cu	Al	Cu	Al	Cu	Al
1.5	24	—	29	—	15	—	19	—
2.5	31	24	38	30	19	13	27	19
4	41	32	49	39	25	19	36	27
6	52	42	61	50	33	26	47	35
10	72	55	83	64	41	34	58	46
16	95	73	105	83	57	44	78	58
25	120	96	135	105	76	59	100	76
35	150	115	160	125	98	76	130	98
50	180	140	195	150	115	90	155	115
70	230	175	240	185	145	110	185	145
95	280	215	285	220	180	140	225	170
120	325	250	325	250	225	175	270	205
150	375	290	365	285	260	200	310	235
185	430	335	415	320	300	230	350	265
240	510	395	480	375	345	270	395	300
300	585	455	545	425	390	305	445	350
400	690	540	625	490	—	—	—	—
500	800	630	710	560	—	—	—	—
630	920	740	810	645	—	—	—	—
Note:The armor of single-core cables is made of non-magnetic materials.
