BS 6724 Power Cable

To get factory direct prices of BS 6724 Power Cable, you can choose Beida as your supplier. This type of cable conforms to British standards and can be used for power supply and control lines. The cable is protected by a halogen-free, low-smoke sheath. In the event of a fire, this cable produces very little smoke, and the smoke is non-toxic. It is suitable for use in densely populated areas, and can be installed inside buildings or buried directly underground.

Send Inquiry

Product Description

Beida is a professional supplier of cables and wires in China. In terms of product structure, our BS 6724 Power Cable uses cross-linked polyethylene (XLPE) insulation and a halogen-free, low-smoke polyolefin sheath, combined with a galvanized steel wire armor layer, forming a multi-layered protection system. The halogen-free, low-smoke sheath has significant safety advantages; when exposed to fire, it not only releases extremely low amounts of smoke, reducing the impact of smoke on ambient light transmission and ensuring escape visibility, but also produces non-toxic and non-corrosive smoke, preventing secondary injuries and fully meeting the safety needs of densely populated areas.

The cables are available in a variety of specifications, from single-core to 48-core. The conductors are made of high-quality annealed copper, offering excellent conductivity. The insulation layer boasts high insulation strength and has undergone withstand voltage testing to ensure safe operation. Whether for power transmission in industrial plants, wiring in high-rise buildings, or power distribution in underground pipelines, Tianjin Beida BS 5467 power cables provide reliable solutions, building a solid safety barrier for power transmission with professional quality.

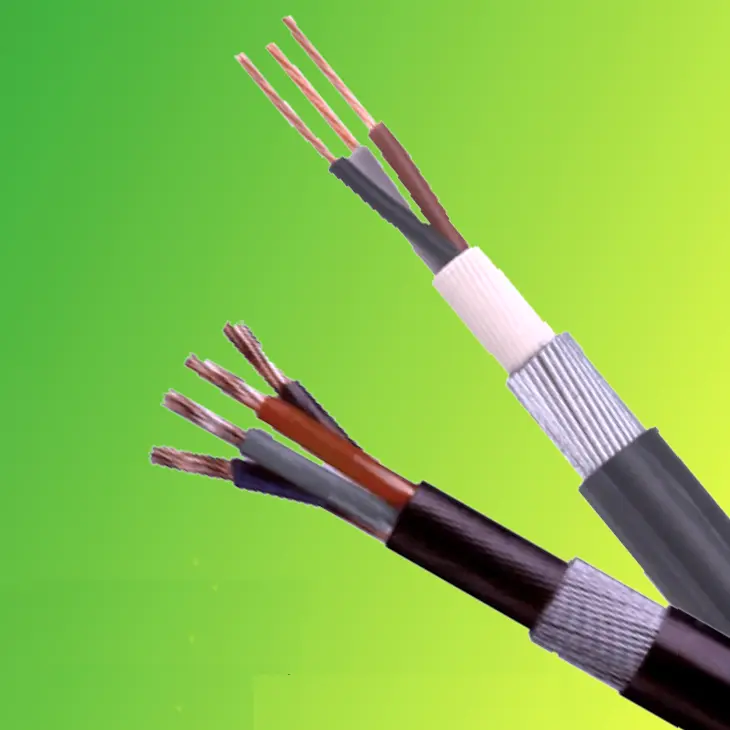

Product Structure

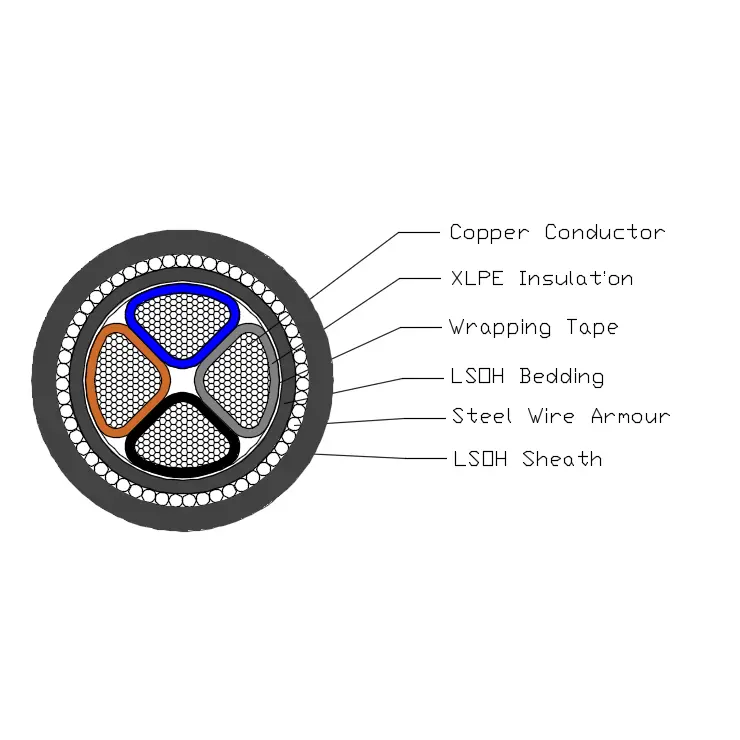

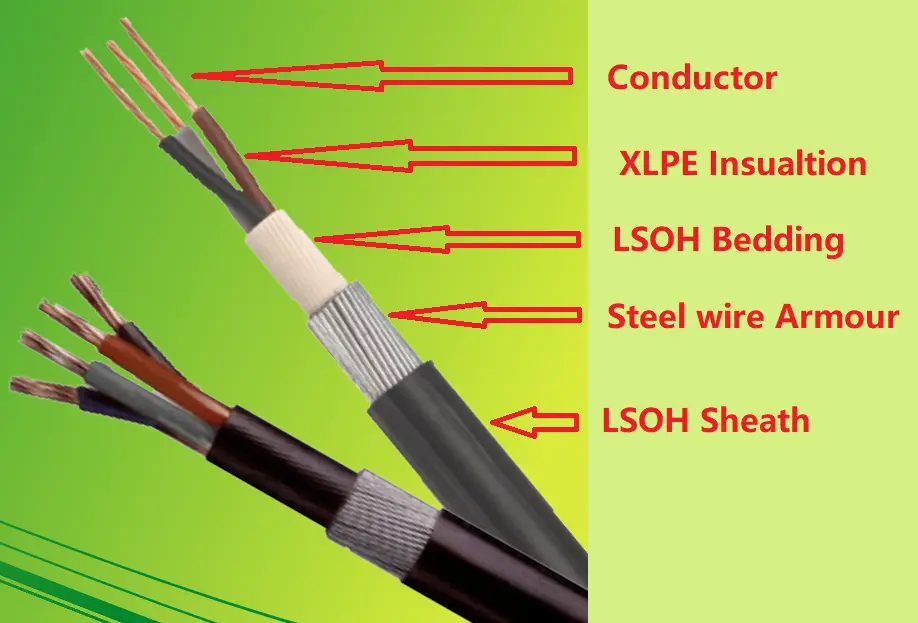

BS 6724 Power Cable is composed of a T1R copper conductor , XLPE insulation, PVC bedding, Steel-weirs armour and LSOH sheath.

Conductor: Solid Copper or Aluminium conductor , circular or Shaped, Class 2 to BS EN 60228.

Insulation: XLPE Type GP8 as per BS 7655-1.3

Core Colour: 1 core: borwn or blue

2 cores: borwn, blue

3 cores: borwn, black, Grey

4 cores: blue, borwn, black, Grey

5 cores:green/yellow, blue, borwn, black, Grey

Above 5 coes: white cores with black number

Bedding: The bedding shall be extruded LSOH polymeric material consistent consistent with the operating temperature of the cable.

Steel-wires armour: Single core cable: aluminum wire armour

Multi core cable: steel wire armour

Outer sheath: The sheath shall be extruded LSOH material specified in BS 7655-6.1.

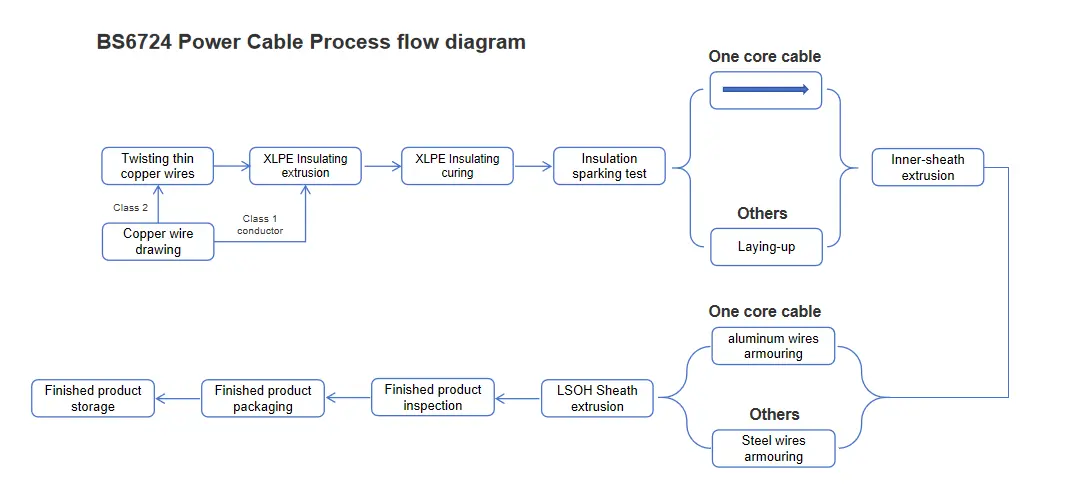

Process flow diagram

Performance parameter

BS 6724 Power Cable has a rated voltage of 600/1000kV, easily alleviating the high-voltage operating requirements of vehicles. It withstood a rigorous 5-minute stress test with 3.5kV voltage without any breakdown, demonstrating stable and reliable insulation performance.

The product has a wide operating temperature range, from 0℃ to +90℃. Even in extreme high-temperature environments, it can withstand temperatures up to +250℃ under short-circuit conditions, making it suitable for various VGA applications.

It is extremely flexible, with a minimum bending radius of 12 times its outer diameter, allowing for flexible and easy wiring, regardless of installation space. Furthermore, its light emission level meets BS EN 60332-1-2 standards, its halogen-free performance is certified by IEC 60754 and EN 50267, and its smoke density meets IEC 61034 and EN 50268 requirements, maximizing its safety and environmental friendliness.

Structure size

Maximum resistance of conductor and armour
for Single-core cable at 20 ℃
Type	Max Resistance at 20 ℃
Nominial Cross-section area of conductor	Conductor		Aluminum wire armour
Nominial Cross-section area of conductor	Copper	Aluminum	Cables with stranded copper conductor	Cables with stranded aluminum conductor
mm²	Ω／km	Ω／km	Ω／km	Ω／km
50	0.387	0.641	1.30	1.40
70	0.268	0.443	0.75	0.84
95	0.193	0.32	0.67	0.75
120	0.153	0.253	0.61	0.69
150	0.124	0.206	0.42	0.47
185	0.0991	0.164	0.38	0.42
240	0.0754	0.125	0.34	0.38
300	0.0601	0.100	0.31	0.35
400	0.0470	—	0.22	—
500	0.0366	—	0.20	—

Maximum resistance of conductor and armour
for cable from 2 to 5 cores at 20 ℃
Type	Max Resistance at 20 ℃
Nominial Cross-section area of conductor	Conductor		Steel wire armour
	Copper	Aluminum	Cables with stranded copper conductor
	Copper	Aluminum	2 core	3 core	4 core	5 core
mm²	Ω／km	Ω／km	Ω／km	Ω／km	Ω／km	Ω／km
1.5	12.1	—	10.20	9.50	8.80	8.20
2.5	7.41	—	8.80	8.20	7.70	6.80
4	4.61	—	7.90	7.50	6.80	6.20
6	3.08	—	7.00	6.70	4.30	3.90
10	1.83	—	6.00	4.00	3.70	3.40
16	1.15	1.91	3.70	3.50	3.10	2.20
25	0.727	1.20	3.70	2.50	2.30	1.80
35	0.524	0.868	2.60	2.30	2.00	1.60
50	0.387	0.641	2.30	2.00	1.80	1.10
70	0.268	0.443	2.00	1.80	1.20	0.94
95	0.193	0.32	1.40	1.30	1.10	—
120	0.153	0.253	1.30	1.20	0.76	—
150	0.124	0.206	1.20	0.78	0.68	—
185	0.0991	0.164	0.82	0.71	0.61	—
240	0.0754	0.125	0.73	0.63	0.54	—
300	0.0601	0.100	0.67	0.58	0.49	—
400	0.0470	—	0.59	0.52	0.35	—

Current-carrying capacity in amperes（A）

Rated voltage 0.6/1kV XLPE insulation power cable
current-carrying capacity in amperes（A）
Ambient temperature：in air：40℃，in ground：25℃
Conductor temparature：90℃
Soil thermal resistance coefficient：1.0k·m/W
Type	CU/XLPE/PVC, AL/XLPE/PVC, CU/XLPE/PVC/STA/PVC, AL/XLPE/PVC/STA/PVC, CU/XLPE/PVC/AWA/PVC, AL/XLPE/PVC/AWA/PVC				CU/XLPE/PVC, AL/XLPE/PVC, CU/XLPE/PVC/STA/PVC, AL/XLPE/PVC/STA/PVC, CU/XLPE/PVC/SWA/PVC, AL/XLPE/PVC/SWA/PVC
Number of core	Single core				Multi cores
Cross-section area,mm²	In air		In ground		In air		In ground
Cross-section area,mm²	Cu	Al	Cu	Al	Cu	Al	Cu	Al
1.5	27	—	40	—	21	—	27	—
2.5	37	28	54	41	26	21	33	27
4	51	39	72	56	34	26	43	32
6	65	52	92	74	44	35	56	42
10	92	70	125	95	56	45	70	54
16	120	94	165	130	77	59	94	69
25	160	120	215	165	100	78	120	90
35	195	150	260	200	130	100	155	115
50	240	185	315	240	160	125	185	135
70	300	235	390	300	195	150	220	165
95	370	285	470	365	245	190	270	200
120	430	335	540	415	300	230	320	240
150	495	385	605	470	350	270	365	275
185	575	445	690	535	400	310	410	310
240	680	530	805	625	465	360	465	355
300	790	610	905	705	550	430	540	410
400	925	725	1045	815	—	—	—	—
500	1075	845	1185	935	—	—	—	—
630	1245	995	1345	1075	—	—	—	—
Note:The armor of single-core cables is made of non-magnetic materials.
