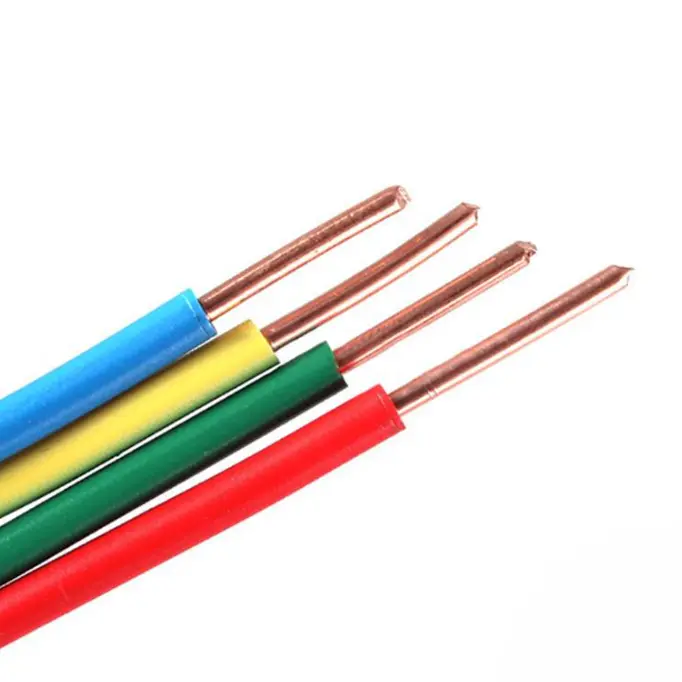

WDZ-BYJ Single Core Cable

Tianjin Beida is a good choice to be your WDZ-BYJ Single Core Cable manufacturer and supplier. This type of cable produces less smoke and toxic gases when burning, causing much less harm to the human body compared to PVC cables. It also provides a longer time for people to escape. Therefore, this type of cable is mainly used in high-rise buildings and densely populated areas.

Send Inquiry

Product Description

As an industry leading manufacturer, Tianjin Beida Cable Group Co., Ltd. has won the trust of numerous customers at home and abroad with its high-quality products and advanced technology since its establishment in 1989. With years of industry experience and technological innovation, we have introduced WDZ-BYJ Single Core Cables, which combine excellent electrical performance with strong safety and are indispensable core components in power and control systems.

WDZ BYJ single-core cable has the characteristics of high temperature resistance, corrosion resistance, anti-electromagnetic interference, etc. It is suitable for many industries, which can effectively improve the stability and safety of power systems and meet the high requirements of various household and industrial scenarios.

Product Application

1. Internal wiring in household appliances

2. Internal connection lines of the electrical cabinet

3. The internal wiring of the house

4. The connection lines of the production equipment

5. Internal wiring of fire alarm devices (fire-resistant cables are used)

Product Structure

Wdz Byj Single Core Cable

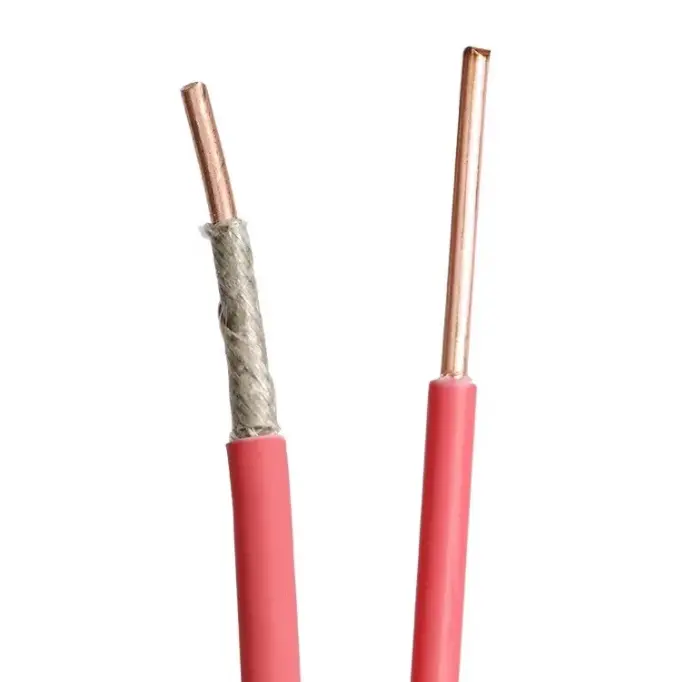

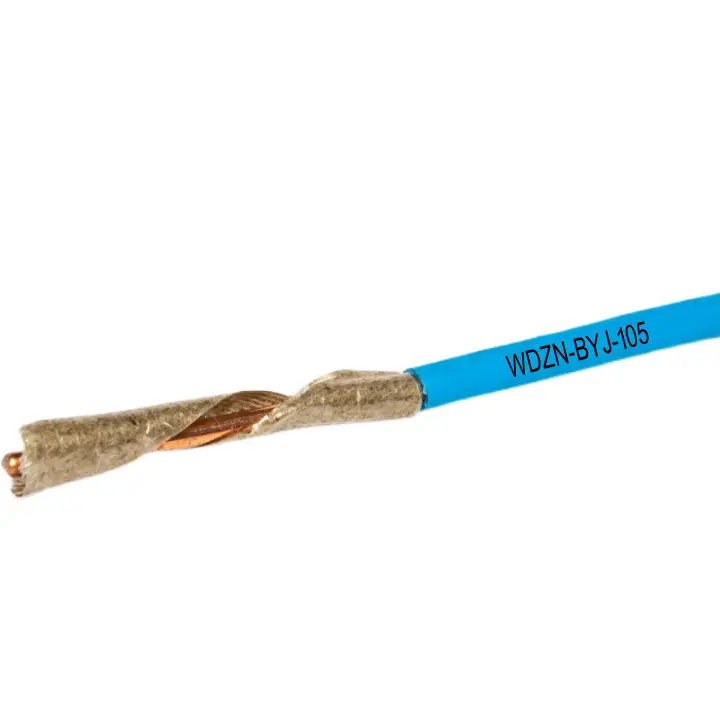

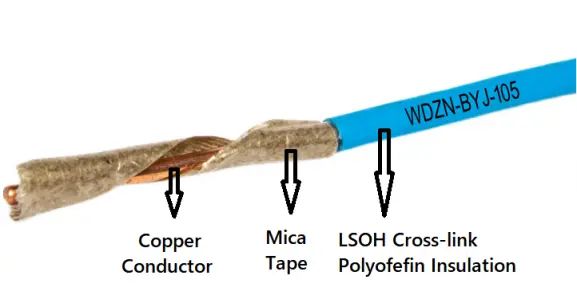

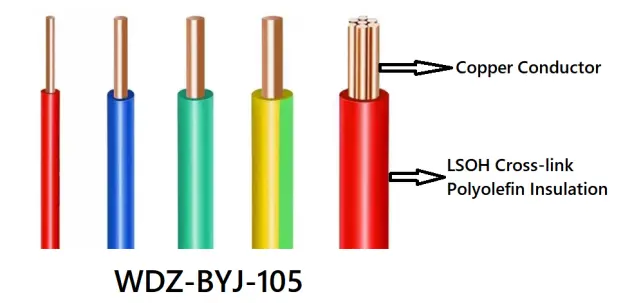

WDZ-BYJ Single Core Cable which is composed of a T1R copper conductor and 105ºC LSOH crossing-link polyolefin (also called LSOH thermosetting) insulation. WDZN-BYJ-105 fire-resistant cable is wrapped with two layers of mica tape on the copper conductor. The rest of the structure is the same as WDZ-BYJ-105.

Conductor: GB/T 3956 cl-1, cl 2

Insulation: Low smoke zero halogen polyolefin compound of JB/T 10437-2004

Core Colour: Red, Yellow, Green, Blue, Green/Yellow, Black, Brown, White, Grey, Grey

Performance parameter

Rated voltage: 450/750V

Test voltage: 2500 V for 5 minutes, no brokendown occured

Conductor Resistance: See below sheet

Working temperature: -5º C to +105ºC

Short circuit temperature: +250 ºC

Minimum Flexing Bending radius: 15* OD;

Minimum Static Bending radius: 10* OD;

Flame retardant: according to GB/T 19666-2019

Fire resistance: according to GB/T 19666-2019

Dimension size: See below sheet

WDZ-BYJ-105 Dimension and conductor resistance

Type	Conductor		Insulation			Electrical Characteristic
	Nominal Area	Structure of Conductor	Insulation Thickness	Overall Diameter		Conductor Resistance at 20 ℃ Max
	Nominal Area	Structure of Conductor	Insulation Thickness	(mm)		Conductor Resistance at 20 ℃ Max
	mm	No./mm	mm	Min	Max	Ω／km
WDZ-BYJ -105	1.5	1/1.38	0.7	2.6	3.2	12.1
	2.5	1/1.78	0.8	3.2	3.9	7.41
	4	1/2.25	0.8	3.6	4.4	4.61
	6	1/2.76	0.8	4.1	5	3.08
	1.5	7/0.52	0.7	2.7	3.3	12.1
	2.5	7/0.67	0.8	3.3	4	7.41
	4	7/0.84	0.8	3.8	4.6	4.61
	6	7/1.03	0.8	4.3	5.2	3.08
	10	7/1.32	1.0	5.6	6.7	1.83
	16	7/1.67	1.0	6.4	7.8	1.15
	25	7/2.10	1.2	8.1	9.7	0.727
	35	7/2.47	1.2	9.0	10.9	0.524
	50	19/1.75	1.4	10.6	12.8	0.387
	70	19/2.10	1.4	12.1	14.6	0.268
	95	19/2.48	1.6	14.1	17.1	0.193
	120	37/2.00	1.6	15.6	18.8	0.153
	150	37/2.22	1.8	17.3	20.9	0.124
	185	37/2.48	2.0	19.3	23.3	0.0991
	240	61/2.22	2.2	22.0	26.6	0.0754

Why Choose Us?

Why choose Tianjin Beida Cable Group? Quality, technology and reliability are key. Since its establishment in 1989, Beida has won the trust of many customers at home and abroad by virtue of excellent products and innovative spirit. Choose North, with significant advantages:

Leading technology: more than 30 years of industry deep cultivation, relying on a strong R & D team and advanced equipment, 3.1% of sales revenue is invested in R & D every year, always at the forefront of technology.

Strict quality control: products through a number of international certification authority, advanced testing equipment and laboratories for a number of tests to ensure first-class quality.

Product diversity: rich product line, meet the needs of different industries, provide customized solutions.

After-sales improvement: technical support team to respond quickly, providing a full range of services.

International layout: products are sold to many countries and cooperate with industry giants. Choose Beida, that is, choose reliable and innovative, get high-quality power connection solutions, and help your career take off!

Take action now to improve your electrical system performance

By choosing WDZ-BYJ Single Core Cable, you are not only choosing a high-quality electrical connection product, but also choosing a long-lasting guarantee for your equipment and power system. With reliable performance, wide applicability and safety assurance in accordance with international standards, WDZ BYJ single-core cable is undoubtedly the most intelligent investment choice in your power system. Contact us today for more product information and purchase now to make your power system safer and more efficient!
